DPC Rollers
Rollers that keep deep pan conveyor chains moving smoothly and reduce component wear in kiln feed, clinker transport and ash handling systems.
- 3 standard sizes
- Made to your drawing
Dimensions
Find your size
Pick a size to see its dimensions, then request a quote for exactly that size.
Selected — DPC roller
CMECH-DPC-518
- Pitch
- 250
- Outer diameter
- 108
- Width
- 160
Size not listed? We manufacture to your drawing or sample —send us your requirement.
View all 3 sizes (full table)

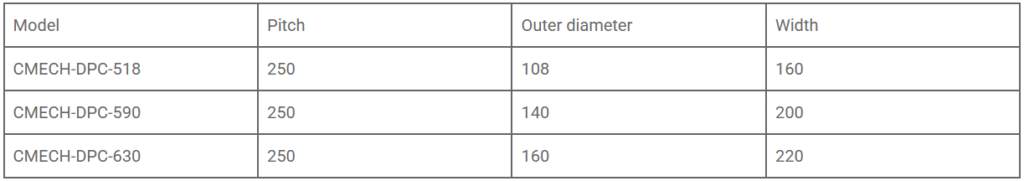

| Model | Pitch | Outer diameter | Width |
|---|---|---|---|
| CMECH-DPC-518 | 250 | 108 | 160 |
| CMECH-DPC-590 | 250 | 140 | 200 |
| CMECH-DPC-630 | 250 | 160 | 220 |

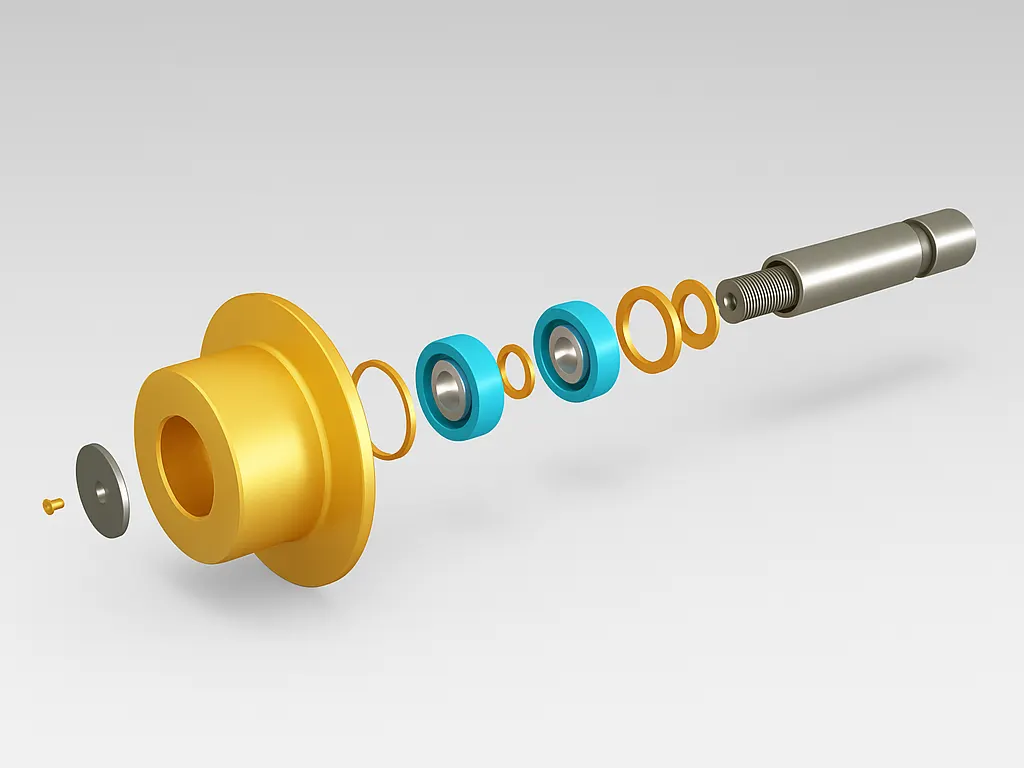

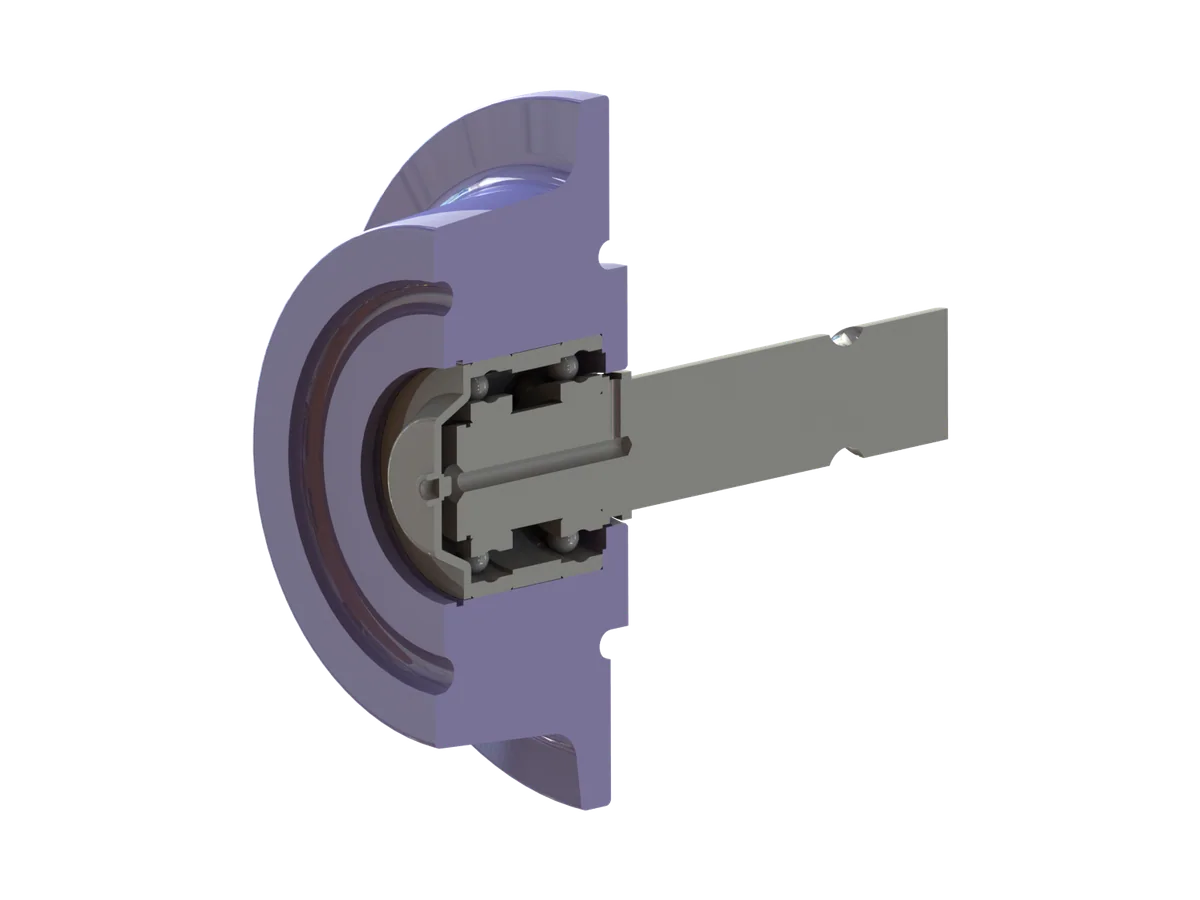

Product Construction
Roller Body
Forged or machined from heat-treated alloy steel for structural durability
Bearings
Pre-lubricated deep groove or spherical bearings, sealed for long life
Seals
Equipped with labyrinth or reinforced rubber seals to block dust and debris
Mounting Shaft
Precision-machined shaft with keyed or slotted ends for secure fitment
Product Construction
Hardened Surface (up to 55 HRC)
Resists abrasive wear and extends service life
Sealed Bearing Assembly
Reduces maintenance and ensures reliable rotation
Standard & Custom Sizes
Available for common pan widths and custom configurations
High Shock Load Resistance
Ideal for heavy start-stop conveying applications
Application Areas
– Kiln feed conveyors in cement plants
– Clinker drag conveyors
– Deep pan conveyors for raw meal and additives
– Ash handling conveyors in thermal systems
Ready to Ship. Ready to Perform.
Our deep pan conveyor parts are engineered as a complete solution — from chain to sprocket to pan. Whether you need a one-to-one OEM match or a performance upgrade, we deliver fast, reliable assemblies backed by field-proven results.
Other Deep Pan Conveyor components
Deep Pan Conveyor Chains
8 sizesHeavy-duty forged chains for deep pan and apron conveyors handling clinker, slag, coal and raw material in abrasive, high-load, high-temperature duty.
View sizes & details
DPC Sprocket & Shaft Assembly
Sprocket and shaft assemblies engineered for deep pan conveyors in clinker coolers, kiln discharge and ash handling — high temperature, high torque, high uptime.
View details
Forged Conveyor Pans
Forged and welded conveyor pans with wear plates, built to carry hot clinker, coarse slag and abrasive coal fines through thermal shock and repeated impact.
View detailsNeed dpc rollers for your plant?
Send us your drawing or requirement — we respond within one business day.
