Stacker & Reclaimer Chain
Chains for bridge-type reclaimers and stackers in cement and power plant yards — continuous duty on abrasive limestone, coal and clinker with minimal wear.
- 31 standard sizes
- Made to your drawing

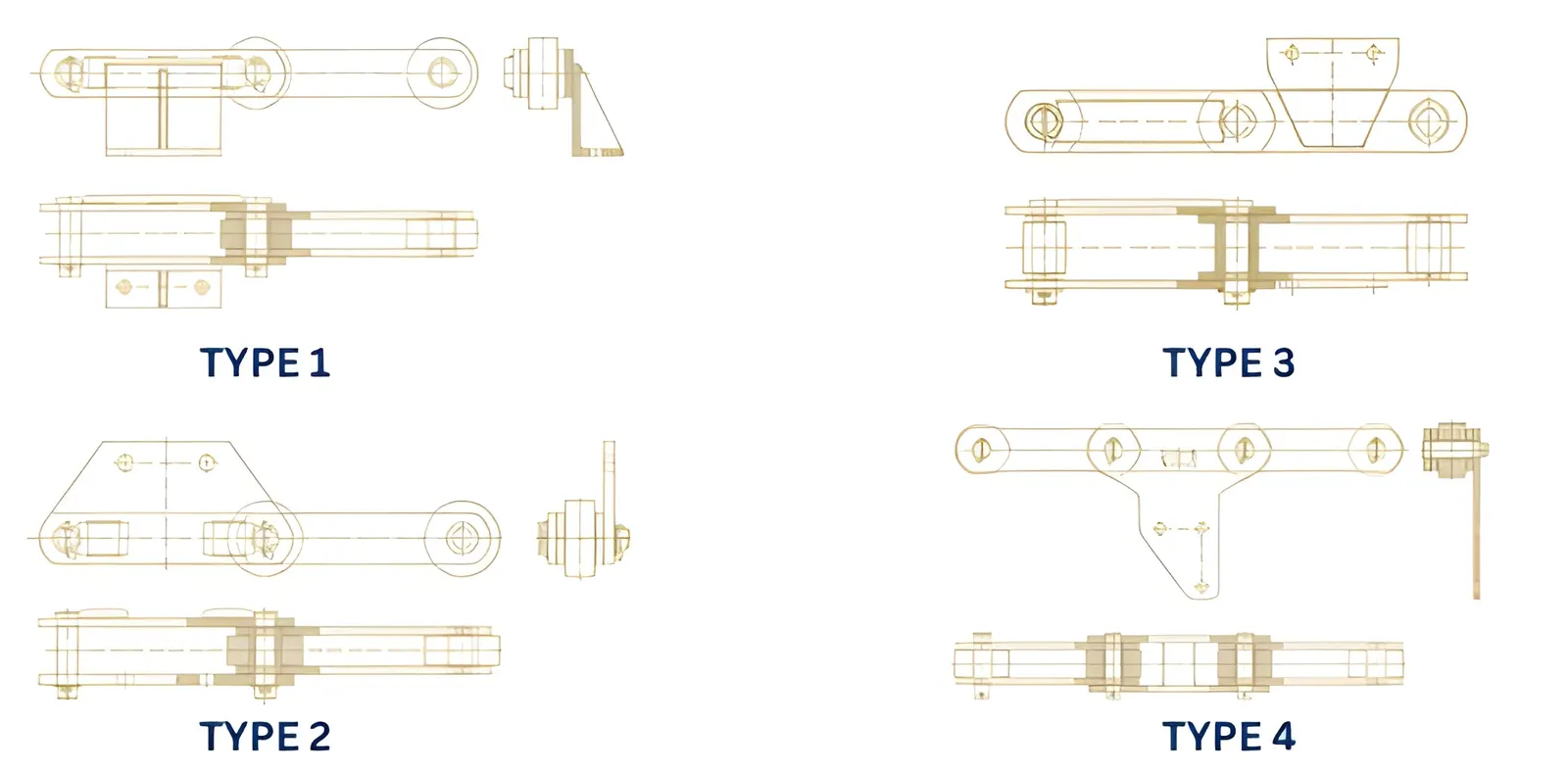

Dimensions
Find your size
Choose the type, then pick a size to see its dimensions, then request a quote for exactly that size.
Selected — 250 mm pitch
CMECH-420 · DDA-01
- Pitch (P)
- 250
- Width (W)
- 48
- Height (H)
- 70
- Thickness m1
- 10
- Thickness m2
- 10
- Roller Ø (D)
- 100
- Hole Ø (U)
- 90
- A
- 22
Size not listed? We manufacture to your drawing or sample —send us your requirement.
View all 14 sizes (full table)
| Model | Variant | Pitch (P) | Width (W) | Height (H) | Thickness m1 | Thickness m2 | Roller Ø (D) | Hole Ø (U) | A |
|---|---|---|---|---|---|---|---|---|---|
| CMECH-420 | DDA-01 | 250 | 48 | 70 | 10 | 10 | 100 | 90 | 22 |
| CMECH-385 | DDA-02 | 250 | 65 | 60 | 12 | 12 | 75 | 100 | 22 |
| CMECH-425 | ADD-01 | 250 | 53 | 75 | 12 | 12 | 100 | 160 | 21 |
| CMECH-465 | ADD-02 | 250 | 55 | 100 | 20 | 20 | 115 | 210 | 25 |
| CMECH-425 | ADD-03 | 250 | 42 | 80 | 12 | 12 | 95 | 160 | 21 |
| CMECH-400 | ABS-01 | 250 | 56 | 65 | 10 | 12 | 85 | 130 | 22 |
| CMECH-405 | ABS-02 | 250 | 36 | 70 | 10 | 10 | 85 | 170 | 22 |
| CMECH-400 | ABS-03 | 250 | 57 | 65 | 10 | 10 | 85 | 130 | 21 |
| CMECH-465 | ABS-04 | 250 | 58 | 100 | 20 | 20 | 115 | 90 | 27.5 |
| CMECH-390 | ABS-05 | 250 | 59 | 60 | 8 | 8 | 80 | 180 | 21 |
| CMECH-400 | ABS-06 | 250 | 56 | 65 | 10 | 10 | 85 | 180 | 21 |
| CMECH-405 | BAS-01 | 250 | 48 | 70 | 10 | 10 | 85 | 170 | 21 |
| CMECH-420 | SBA-01 | 250 | 49 | 70 | 10 | 10 | 100 | 90 | 18 |
| CMECH-416 | SBA-01 | 250 | 42 | 70 | 10 | 10 | 96 | 90 | 18 |
Selected — 315 / 400 mm pitch
CMECH-515 · VAR-DDA
- Pitch (P)
- 315
- Width (w)
- 51
- Height (H)
- 80
- Thickness (m1)
- 12
- Scraper thickness (m2)
- 12
- Roller Ø (d1)
- 120
- Q
- 130
- Roller Ø (d2)
- —
Size not listed? We manufacture to your drawing or sample —send us your requirement.
View all 17 sizes (full table)
| Model | Variant | Pitch (P) | Width (w) | Height (H) | Thickness (m1) | Scraper thickness (m2) | Roller Ø (d1) | Q | Roller Ø (d2) |
|---|---|---|---|---|---|---|---|---|---|
| CMECH-515 | VAR-DDA | 315 | 51 | 80 | 12 | 12 | 120 | 130 | — |
| CMECH-495 | VAR-DDA | 315 | 56 | 80 | 12 | 12 | 100 | 120 | — |
| CMECH-545 | VAR-DDA | 315 | 70 | 100 | 15 | 15 | 130 | 130 | — |
| CMECH-565 | VAR-DDA | 315 | 70 | 100 | 15 | 15 | 150 | 130 | — |
| CMECH-530 | VAR-ADD | 315 | 60 | 100 | 12 | 12 | 115 | 200 | — |
| CMECH-540 | VAR-ADD | 315 | 66 | 100 | 12 | 12 | 125 | 170 | — |
| CMECH-515 | VAR-ADD | 315 | 66 | 90 | 16 | 16 | 110 | 170 | — |
| CMECH-530 | VAR-ADD | 315 | 61 | 100 | 18 | 18 | 115 | 200 | — |
| CMECH-550 | VAR-ADD | 315 | 76 | 110 | 20 | 20 | 125 | 170 | — |
| CMECH-635 | VAR-ADD | 400 | 76 | 110 | 20 | 20 | 125 | 180 | — |
| CMECH-510 | VAR-BPS | 315 | 50 | 75 | 12 | 16 | 120 | 130 | — |
| CMECH-555 | VAR-BPS | 315 | 56 | 110 | 12 | 16 | 130 | 130 | — |
| CMECH-535 | VAR-BPS | 315 | 65 | 100 | 14 | 14 | 120 | 200 | — |
| CMECH-485 | VAR-PSB | 315 | 82 | 100 | 12 | 12 | 70 | 132 | — |
| CMECH-445 | VAR-SBP | 315 | 66 | 80 | 12 | 12 | 50.15 | 130 | 100 |
| CMECH-480 | VAR-SBP | 315 | 90 | 100-110 | 12 | 12 | 54.7 | 150 | 130 |
| CMECH-550 | VAR-SPB | 315 | 70 | 110 | 15 | 15 | 125 | 100 | — |
Product Construction

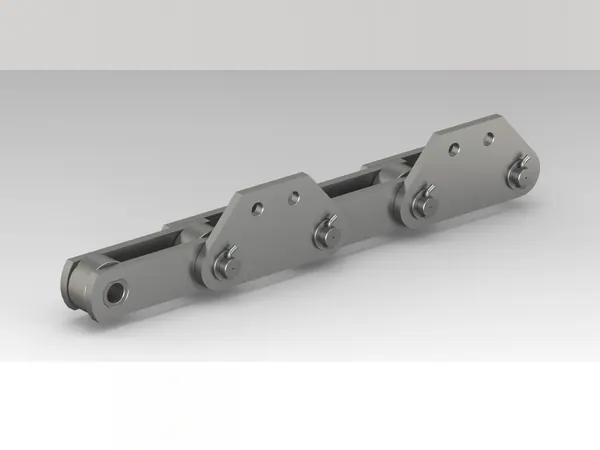

Side Links
Forged or machined alloy steel; heat-treated for abrasive and impact conditions
Pins and Bushes
Through-hardened for resistance to elongation and shock
Rollers
Sealed for life or greasable; support low-friction motion
Scraper Attachments
Welded or bolted for customized scraper system integration
Key Features & Benefits
Chain Pitch Options: 250 & 315 mm
Compatible with standard stacker & reclaimer layouts
High Tensile Strength
Break loads up to 1150 kN for load-intensive conditions
Long Wear Life
Induction-hardened bushes and pins reduce maintenance cycles
Customizable Link Types
Adaptable to yard geometry and scraper path
Application Areas
Limestone, clinker, and coal reclaim systems
Bridge and portal type stacker-reclaimers
Circular stockyard reclaimers
Storage yard systems in cement and power sectors
Ready to Ship. Ready to Perform
From side links to scraper mounts, our stacker & reclaimer chains are field-tested and available for rapid delivery.
