Drag Conveyor Chains
Drag conveyor chains for horizontal and inclined conveying of abrasive, hot and heavy bulk material — single strand for compact conveyors, double strand for high capacity.
- 15 standard sizes
- Made to your drawing
Dimensions
Find your size
Choose the type, then pick a size to see its dimensions, then request a quote for exactly that size.
Selected — Single strand
101.6 · 12
- Height(h) (mm)
- 36
- Width (w) (mm)
- 30
- Hole Diameter (mm)
- 14
- Web Thickness (m1) (mm)
- 8
- Web Thickness (m2) (mm)
- 6
Size not listed? We manufacture to your drawing or sample —send us your requirement.
View all 9 sizes (full table)

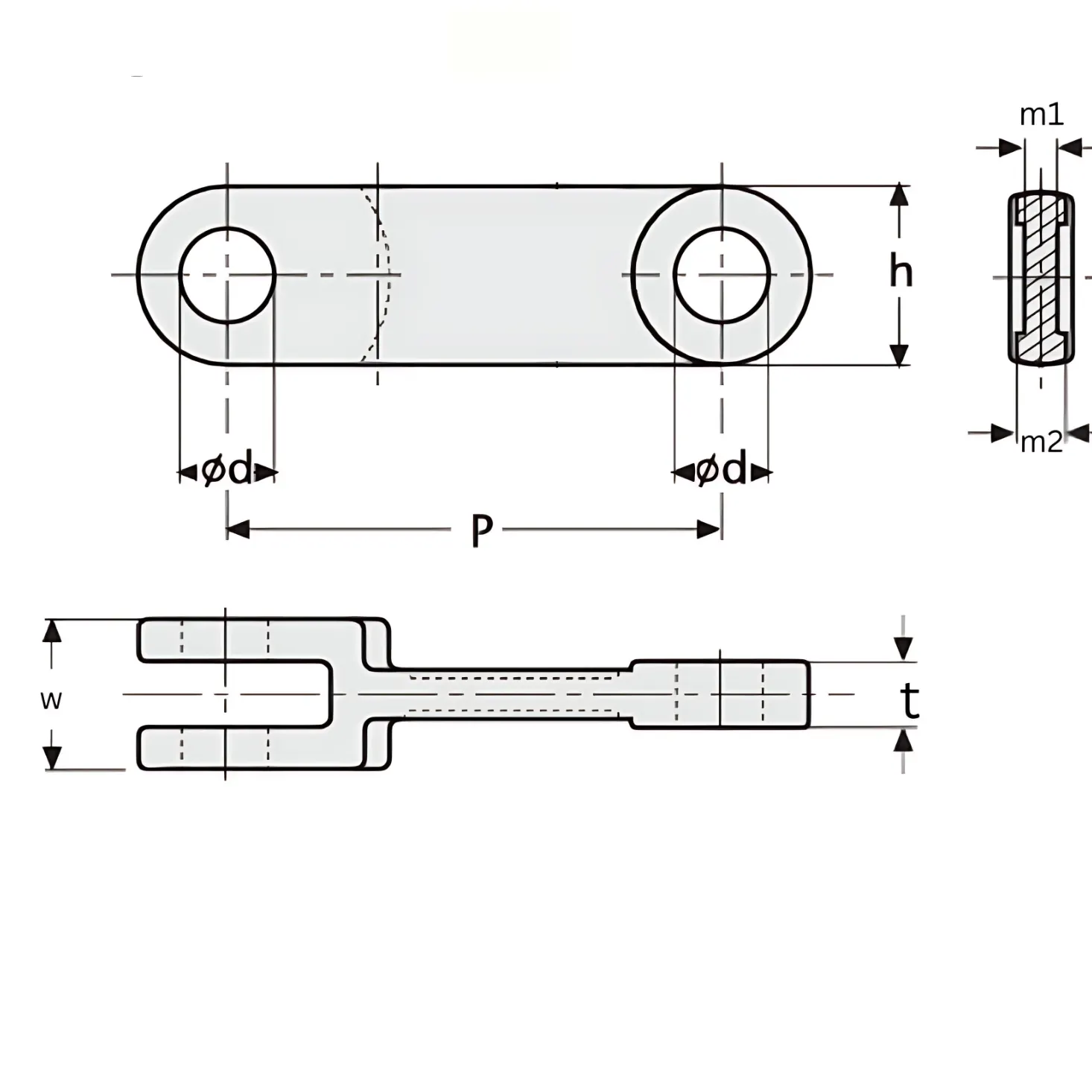

| Pitch (p mm) | Height(h) (mm) | Eye Thickness (t) (mm) | Width (w) (mm) | Hole Diameter (mm) | Web Thickness (m1) (mm) | Web Thickness (m2) (mm) |
|---|---|---|---|---|---|---|
| 101.6 | 36 | 12 | 30 | 14 | 8 | 6 |
| 142 | 50 | 19 | 42 | 25 | 13 | 9 |
| 142 | 50 | 25 | 54 | 25 | 16 | 12 |
| 142 | 50 | 29 | 62 | 25 | 16 | 12 |
| 160 | 50 | 25 | 54 | 25 | 16 | 12 |
| 175 | 60 | 30 | 72/62 | 30 | 20 | 14 |
| 200 | 60 | 30 | 70 | 30 | 20 | 14 |
| 250 | 70 | 30 | 70 | 35 | 20 | 14 |
| 360 | 75 | 30 | 70 | 32 | 20 | 14 |
Selected — Double strand
142 · 19
- Height (h) (mm)
- 50
- Width (w) (mm)
- 42
- Hole Dia (mm)
- 25
- Web Thickness (mm) (m1)
- 13
- Web Thickness (mm)(m2)
- 9
- Overall Width (mm) (n1)
- 70
- Side Slot Width) (mm) (n2)
- 13
Size not listed? We manufacture to your drawing or sample —send us your requirement.
View all 6 sizes (full table)

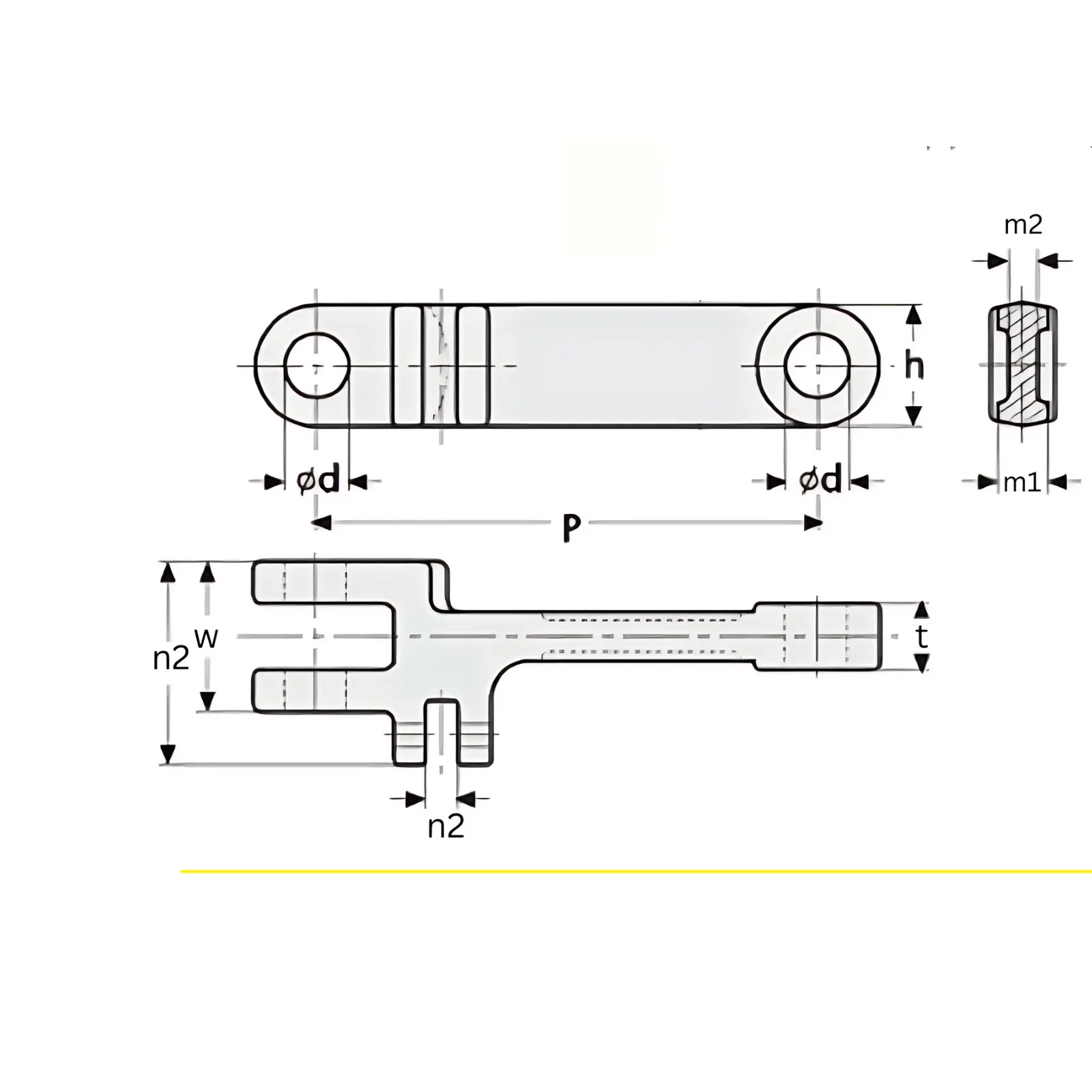

| Pitch(p) (mm) | Height (h) (mm) | Thickness (t) (mm) | Width (w) (mm) | Hole Dia (mm) | Web Thickness (mm) (m1) | Web Thickness (mm)(m2) | Overall Width (mm) (n1) | Side Slot Width) (mm) (n2) |
|---|---|---|---|---|---|---|---|---|
| 142 | 50 | 19 | 42 | 25 | 13 | 9 | 70 | 13 |
| 142 | 50 | 29 | 62 | 25 | 16 | 12 | 82 | 13 |
| 175 | 60 | 30 | 72/62 | 30 | 20 | 14 | 98 | 16 |
| 200 | 50 | 25 | 60 | 25 | 20 | 14 | 82 | 13 |
| 200 | 60 | 30 | 70 | 30 | 20 | 14 | 100 | 16 |
| 250 | 60 | 30 | 70 | 30 | 20 | 14 | 100 | 16 |
Technical Highlights & Construction Features
Chain Profile
Drop-forged single/double strand links with wide shoulders for torque stability
Material
Alloy steel with refined microstructure; hardened for abrasive and thermal resistance
Heat Treatment
Quenched and tempered; case-hardened to 40–50 HRC for high wear performance
Pin System
Precision-ground pins with positive locking and shock-load tolerance

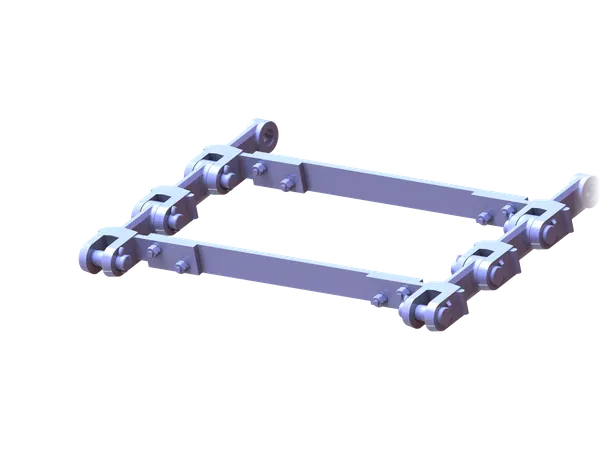

Flight Attachment
Welded or bolted scrapers in flat bar, T-head, or U-type configuration
Pitch Precision
Tight tolerances reduce misalignment, noise, and premature elongation
Breaking Load
Chains proof-tested up to 3.2× rated working load
Single vs. Double Strand Chain – What’s Right for You?
Single Strand Drag Chains
Ideal for low to medium-load conveyors with tight spatial configurations.
- Compact and economical
- Smooth operation at moderate speeds
- Lighter construction — easier maintenance
- Recommended for ash, gypsum, and limestone systems

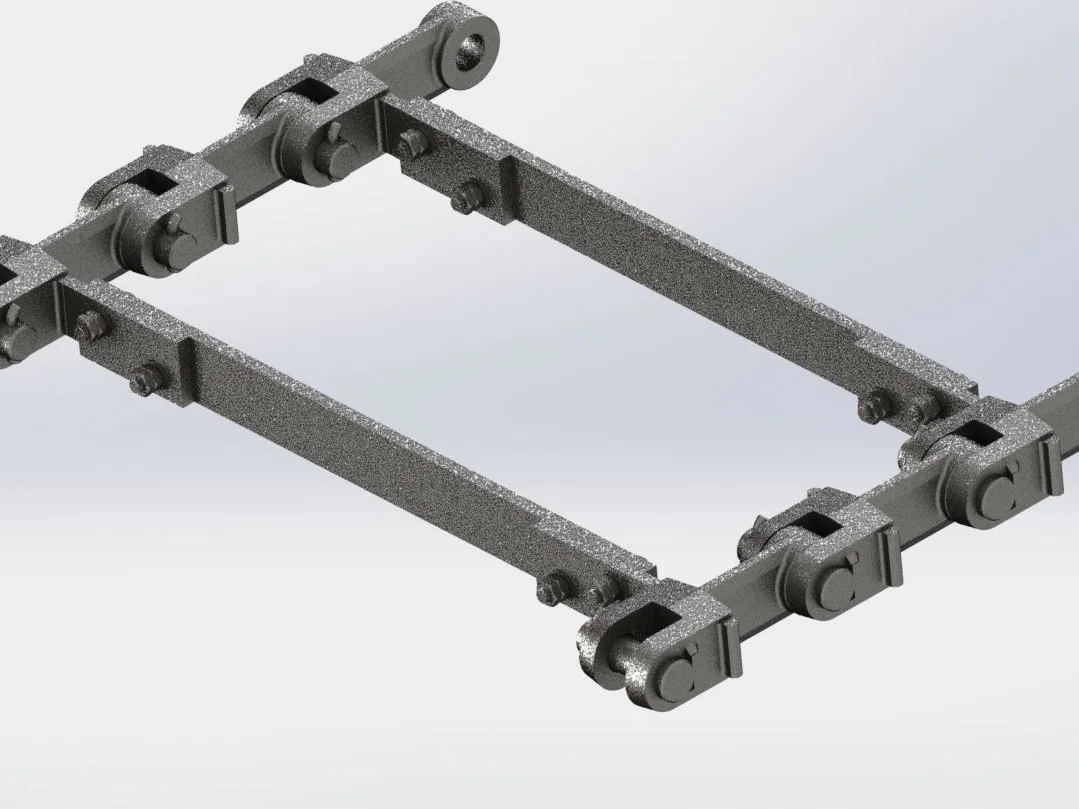

Double Strand Drag Chains
Built for extreme-duty performance in wide conveyors or high-capacity systems.
- Doubled link rows for higher load distribution
- Handles large volumes of hot clinker, coal, slag
- Greater torque transmission and scraper width
- Used in clinker coolers, bottom ash, and mining conveyors
Application Advantages
Suitable for fully enclosed conveying — reduces dust, spillage, and environmental exposure
Low elongation rate — less downtime for retensioning or adjustment
Compatible with Constromech and OEM sprockets and shafts
Available with flight wear pads, high-temp bushings, and abrasion-resistant options
Scraper designs tailored to material flow behavior and conveyor layout
Why Choose Constromech Drag Chains?
Custom-Engineered Options
- Flight design, pitch size, and strand type tailored to your application
- Choose from T-head, U-type, or flat bar scrapers (bolt-on or welded)
System Compatibility
- Ready-to-fit with all standard drag conveyor setups
- Retrofit options available with identical pitch and fitment specs
Complete Assembly Solutions

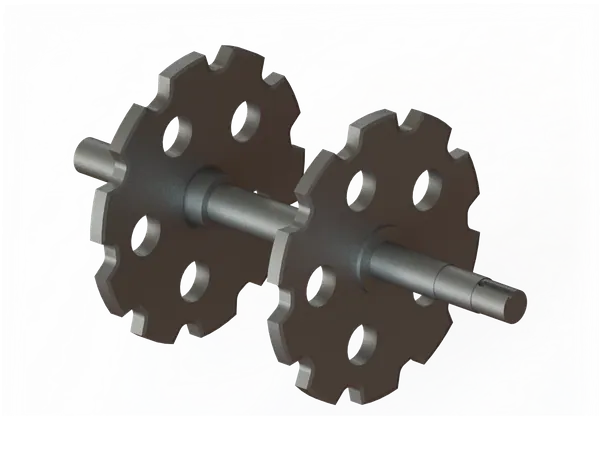

- Full kit with chains, flights, shafts, and sprockets
- Pre-assembled packages ensure fast installation with minimal shutdown
In-House Quality Assurance
- Proof-loading, NDT, and hardness tests performed on every lot
- Certified QA documents and traceability codes included
Fast Delivery & Engineering Support
- Standard models available with short lead times
- Application support: layout review, flight spacing, wear analysis
Industries Served
Cement & Clinker Conveyors
Power Plant Ash Handling
Steel Plant Slag & Dust Conveying
Gypsum, Lime, and Mineral Processing
Aggregate & Quarry Belt Replacements
Constromech drag chains are built to outperform. Whether you’re designing a new system or upgrading a legacy line, we deliver engineered drag chain systems designed to withstand heat, wear, and heavy-duty operation — with full retrofit and lifecycle support.
Need drag conveyor chains for your plant?
Send us your drawing or requirement — we respond within one business day.
