Flow Conveyor Chain
Flow conveyor chains for horizontal or low-angle conveying of powdered and granular material in cement kilns, fly ash systems and additive dosing lines — controlled flow with less wear and noise.
- 14 standard sizes
- Made to your drawing

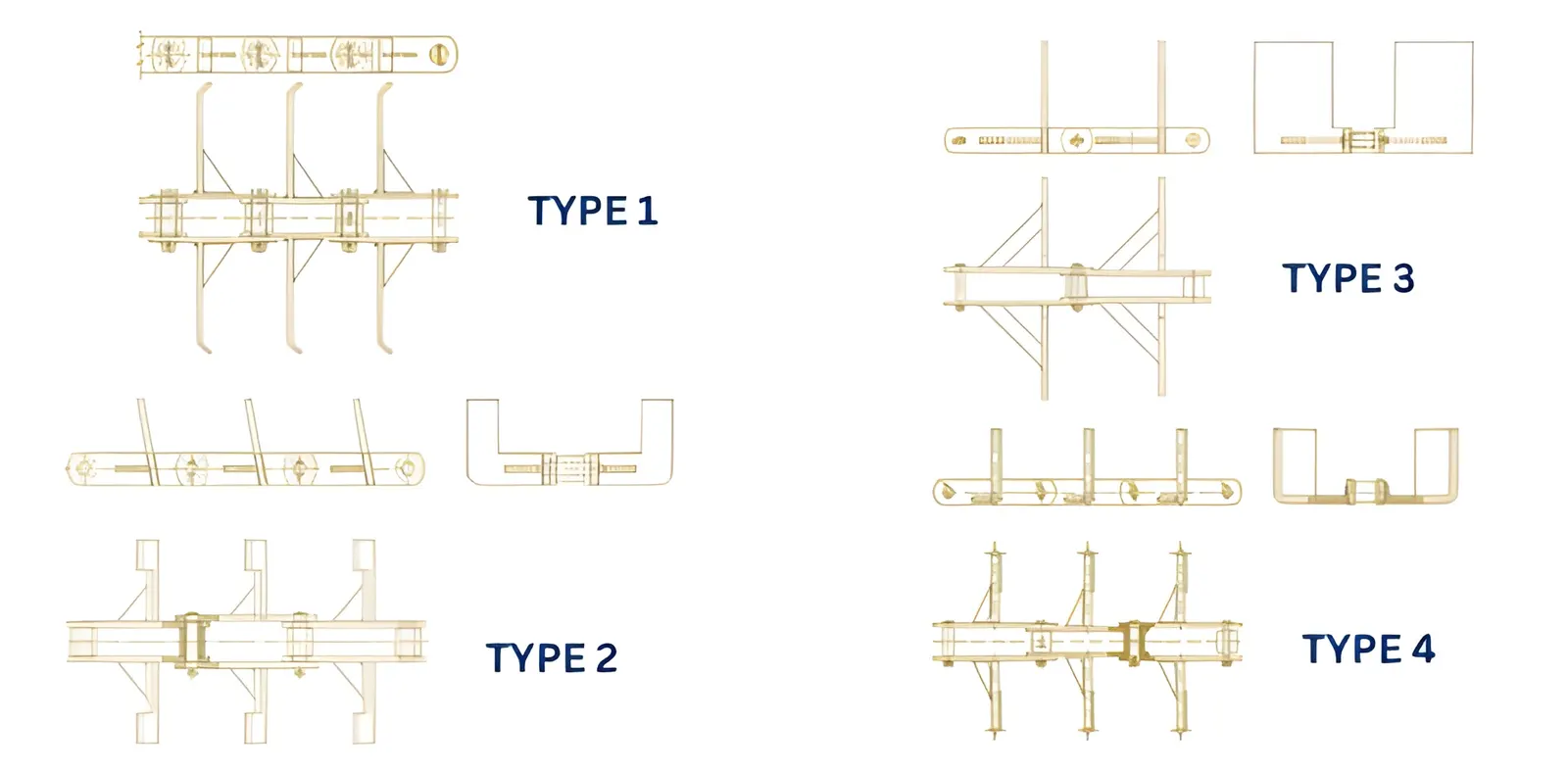

Dimensions
Find your size
Pick a size to see its dimensions, then request a quote for exactly that size.
Selected — Flow conveyor chain
CMECH-DDA-FC-101
- Variant
- VAR-DDA
- Pitch (P)
- 200
- Width (w)
- 37
- Height (h)
- 45
- t
- 8
- d
- 38
- Roller dia. (S)
- 45
- T
- 392
- U
- 8
- Roller dia. (V)
- NA
Size not listed? We manufacture to your drawing or sample —send us your requirement.
View all 14 sizes (full table)
| Model | Variant | Pitch (P) | Width (w) | Height (h) | t | d | Roller dia. (S) | T | U | Roller dia. (V) |
|---|---|---|---|---|---|---|---|---|---|---|
| CMECH-DDA-FC-101 | VAR-DDA | 200 | 37 | 45 | 8 | 38 | 45 | 392 | 8 | NA |
| CMECH-DDA-FC-102 | VAR-DDA | 125 | 42 | 50 | 6 | 25 | 46 | 380 | 6 | NA |
| CMECH-ADD-FC | VAR-ADD | 300 | 75 | 90 | 16 | 70 | 240 | 570 | 16 | NA |
| CMECH-DAD-FC | VAR-DAD | 300 | 56 | 65 | 10 | 50 | 285 | 560 | 12 | NA |
| CMECH-SPB-FC | VAR-SPB | 300 | 67.5 | 80 | 12 | 63.5 | 240 | 570 | 25 | NA |
| CMECH-PBS-FC-201 | VAR-PBS | 203.2 | 299 | 50 | 16 | NA | 50 | 660 | 12 | NA |
| CMECH-PBS-FC-202 | VAR-PBS | 203.2 | 300 | 50 | 12 | NA | 50 | 750 | 12 | NA |
| CMECH-BPS-FC-301 | VAR-BPS | 152.4 | 36.5 | 50 | 8 | 36.5 | 102 | 222.5 | NA | 16 |
| CMECH-BPS-FC-302 | VAR-BPS | 200 | 58 | 75 | 10 | 48.5 | 160 | 358 | NA | 20 |
| CMECH-BPS-FC-303 | VAR-BPS | 200 | 54 | 60 | 10 | 44.5 | 155 | 295 | NA | 20 |
| CMECH-BPS-FC-304 | VAR-BPS | 200 | 52 | 60 | 10 | 44.5 | 151 | 355 | NA | 20 |
| CMECH-BPS-FC-305 | VAR-BPS | 200 | 54 | 60 | 10 | 44.5 | 155 | 374 | NA | 20 |
| CMECH-BPS-FC-306 | VAR-BPS | 300 | 68 | 90 | 12 | 69 | 228 | 428 | NA | 25 |
| CMECH-SBP-FC | VAR-SBP | 228.6 | 104 | 65 | 20 | 63.4 | 64 | 546 | 20 | NA |
Product Construction

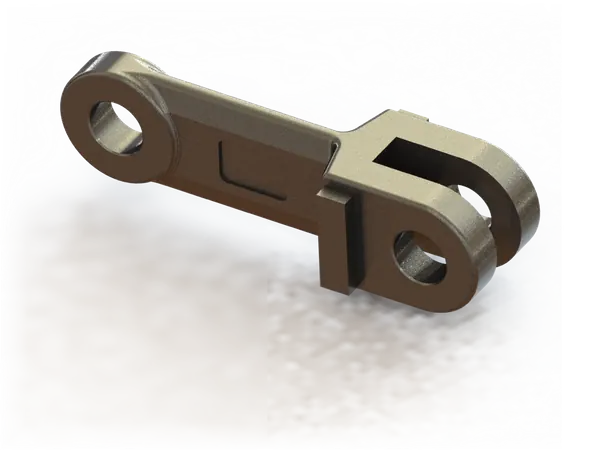

Side Bars
Deep-profile links designed for material pushing and directional control
Bush-Pin Assembly
Heavy-duty pins and bushes; surface-hardened for abrasive flow

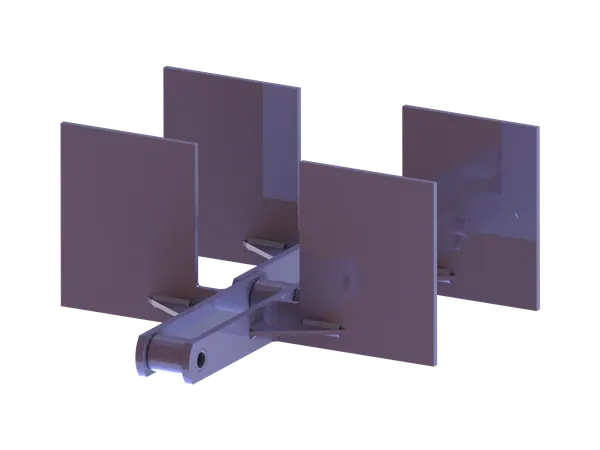

Flight Attachments
Welded scrapers or paddles for bulk movement
Guide Rollers
Optional side rollers for alignment in guided channels
Key Features & Benefits
Pitch Range: 125 – 228.6 mm
Supports layout flexibility for new and retrofit systems
Abrasion-Resistant Components
Ideal for handling cement dust, fly ash, and granular solids
Multiple Link Styles Available
Suitable for deep or shallow conveying channels
Quiet and Smooth Operation
Designed for low-noise, low-vibration environments
Application Areas
Horizontal/Inclined ash conveyors
Additive feeding lines
Fly ash and dust handling systems
Raw meal flow conveyors in cement plants
Reliable Flow Starts Here
Our flow conveyor chains ensure metered, dust-free transport — custom-fit to your hopper or kiln line.
