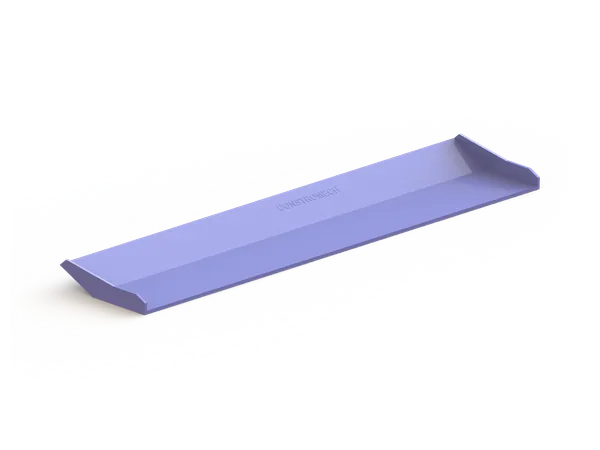

Forged Conveyor Pans
Forged and welded conveyor pans with wear plates, built to carry hot clinker, coarse slag and abrasive coal fines through thermal shock and repeated impact.
- Made to your drawing
Construction Features
Base Fabrication
Welded structural steel pan body with reinforcing ribs
Wear Surface
400–500 BHN alloy steel liners on bottom and side walls

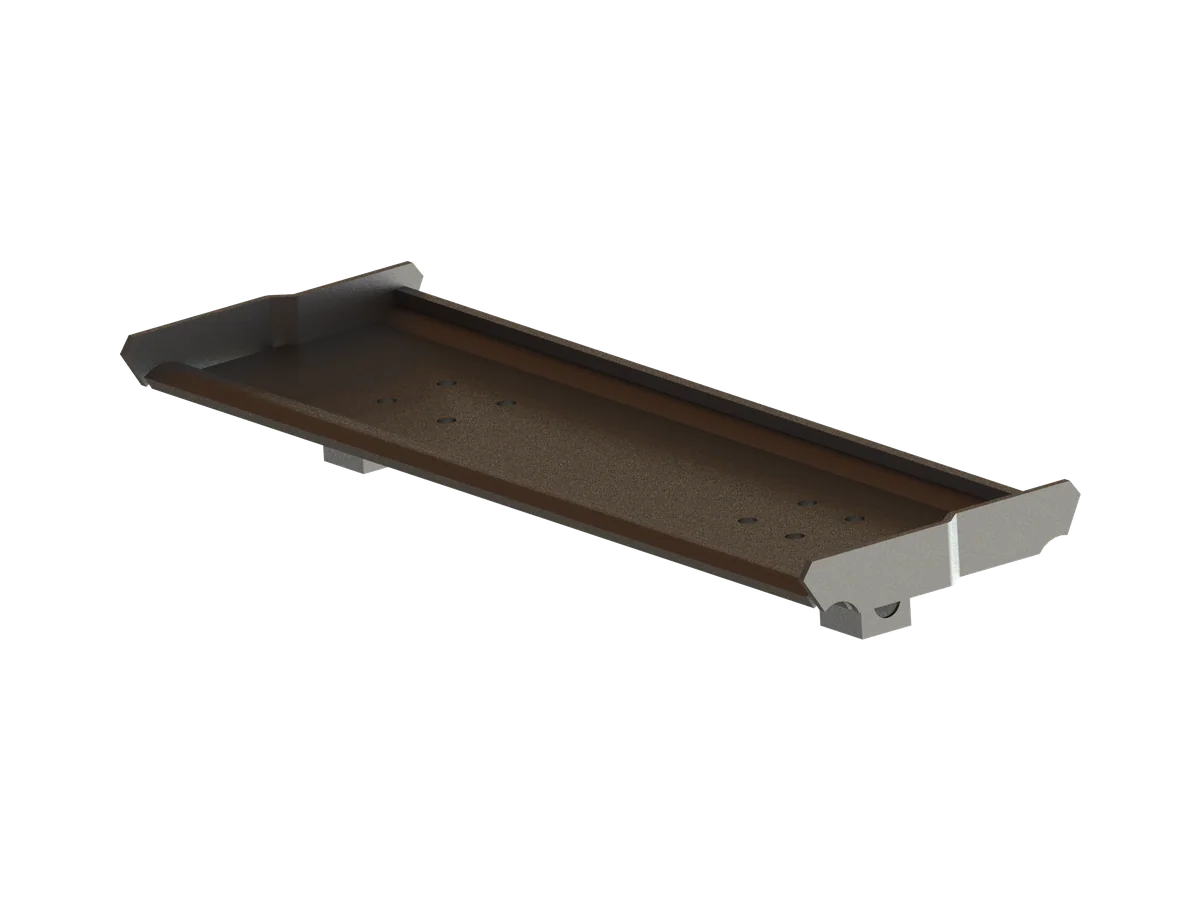

Chain Connector
Forged side-lug connection, match-drilled to DPC chain pitch and pin type
Thermal Resistance
Operates up to 500°C under clinker discharge
Modular Build
Bolt-together assembly design; quick field replacement without welding
Interior Finish
Anti-stick surface reduces buildup of fines or sticky residue
Operational Benefits
Rugged structure absorbs vertical and lateral impacts from large lumps
Fully interchangeable with most OEM pan sizes
No weld failures under heat expansion or torsion stress
Bolt-on and field-alignable — quick install, no fabrication needed
Available with optional side skirts, wear pads, or lifting guides
Ready to Ship. Ready to Perform.
At Constromech, our deep pan conveyor parts are engineered as a complete solution — from chain to pan. Whether you need a one-to-one OEM match or a performance upgrade, we deliver fast, reliable assemblies backed by field-proven results.
