DPC Sprocket & Shaft Assembly
Sprocket and shaft assemblies engineered for deep pan conveyors in clinker coolers, kiln discharge and ash handling — high temperature, high torque, high uptime.
- Made to your drawing
Technical Highlights & Construction Features
Tooth Design
Precision-machined single or dual-row forged teeth for positive DPC chain engagement
Material
Alloy Steel
Surface Hardening
Induction hardened to 55–60 HRC with 4–6 mm case depth
Mounting Options
Split-hub, solid-hub, or taper-lock connection
Shaft Options
Solid or hollow shaft with keyways and hardened journal ends
Balance & Tolerance
ISO G 6.3 dynamic balancing; axial run-out ≤ 0.05 mm
Surface Protection
Phosphate coating or epoxy enamel for corrosion resistance
Key Benefits
True pitch engagement with forged DPC links

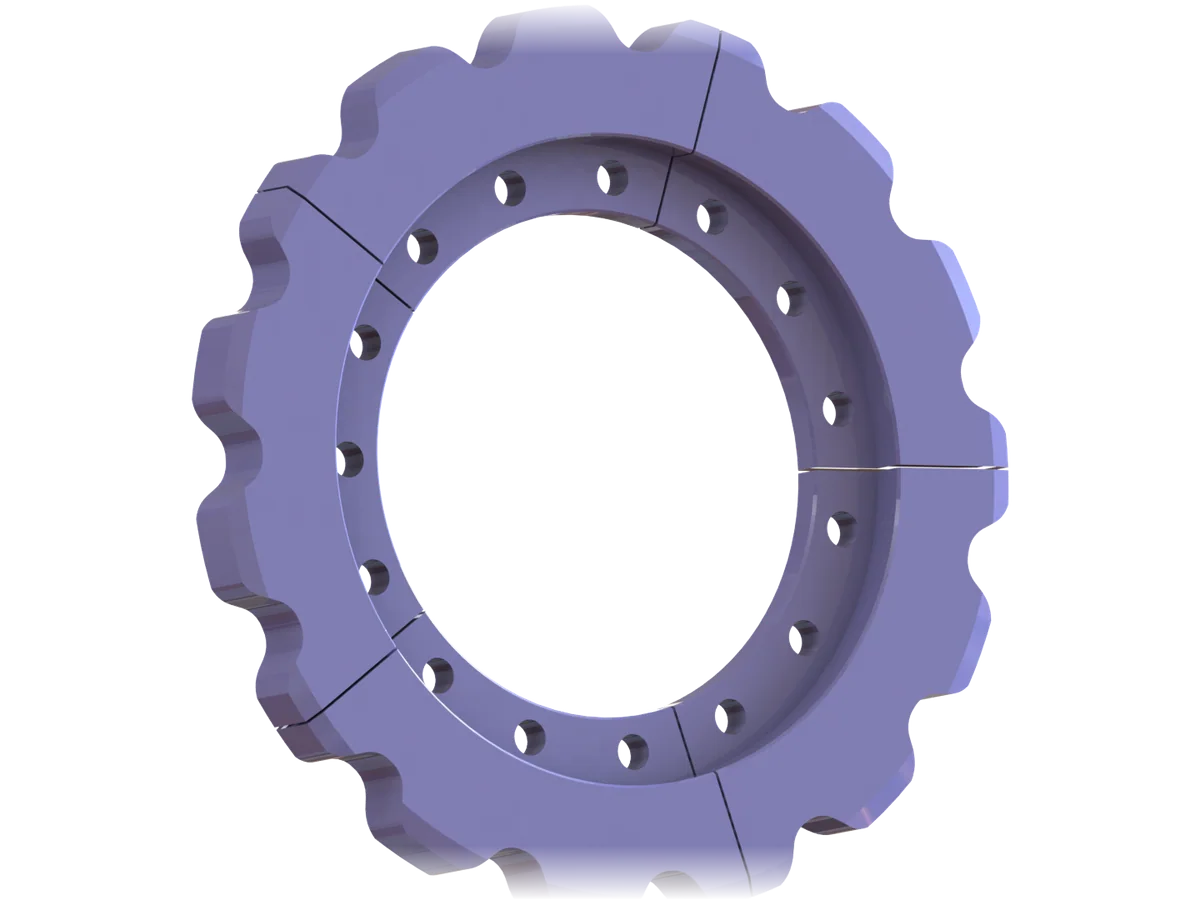

Segmental sprockets allow easy rim replacements during shutdown
Zero chain jump and minimized bearing fatigue
Greased-for-life or regreasable sealed bearing units available
Perfect fit with OEM chain specs — no modification required
Ready to Ship. Ready to Perform.

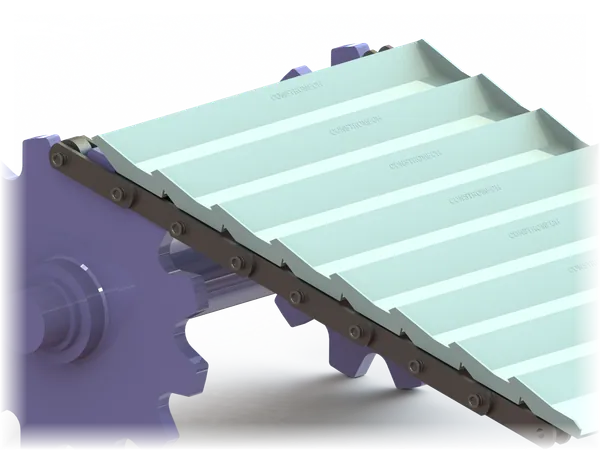

At Constromech, our Deep Pan Conveyor parts are engineered as a complete solution — from chain to sprocket & Shaft assembly. Whether you need a one-to-one OEM match or a performance upgrade, we deliver fast, reliable assemblies backed by field-proven results.
