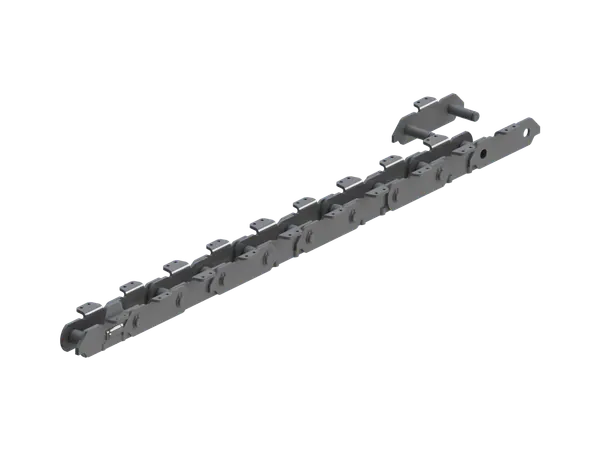

Deep Pan Conveyor Chains
Heavy-duty forged chains for deep pan and apron conveyors handling clinker, slag, coal and raw material in abrasive, high-load, high-temperature duty.
- 8 standard sizes
- Made to your drawing
Dimensions
Find your size
Pick a size to see its dimensions, then request a quote for exactly that size.
Selected — DPC chain (250 mm pitch)
55 · 70
- Model
- Cmech-DPC250
- Pitch (p) mm
- 250
- Thickness (t) mm
- 12
- d (mm)
- 44
- S (mm)
- 71
- T (mm)
- 85
- U (Ø)
- 14
- V (mm)
- 80
Size not listed? We manufacture to your drawing or sample —send us your requirement.
View all 8 sizes (full table)
| Model | Pitch (p) mm | Width (w) mm | Height (h) mm | Thickness (t) mm | d (mm) | S (mm) | T (mm) | U (Ø) | V (mm) |
|---|---|---|---|---|---|---|---|---|---|
| Cmech-DPC250 | 250 | 55 | 70 | 12 | 44 | 71 | 85 | 14 | 80 |
| Cmech-DPC250 | 250 | 46 | 65 | 10 | 40 | 60.5 | 70 | 14 | 80 |
| Cmech-DPC250 | 250 | 30 | 45 | 8 | 32 | 60.5 | 70.5 | 14 | 80 |
| Cmech-DPC250 | 250 | 60 | 85 | 12 | 52 | 70.5 | 85.5 | 14 | 80 |
| Cmech-DPC250 | 250 | 45 | 65 | 10 | 40 | 59.5 | 140 | 14 | 80 |
| Cmech-DPC250 | 250 | 60 | 90 | 10 | 60 | 70 | 85.75 | 14 | 80 |
| Cmech-DPC250 | 250 | 60 | 90 | 12 | 44 | 70 | 85 | 14 | 80 |
| Cmech-DPC250 | 250 | 80 | 95 | 12 | 76 | 70.5 | 110 | 14 | 80 |
Technical Highlights & Construction Features
Chain Design
Drop-forged/Plate symmetrical links for bidirectional use; optimized for lateral strength
Material
Alloy steel with fine-grain structure for fatigue and impact resistance
Heat Treatment
Carburized or quenched & tempered; case-hardened to 45–55 HRC
Pin & Bush Assembly
Hardened pins and precision-machined bushings minimize elongation
Pitch Accuracy
Tight pitch tolerances (±0.25 mm) ensure smooth sprocket engagement
Lubrication Grooves
Optional oiling paths to enhance lifespan in hot zones
Proof Load Testing
Each chain batch proof-tested to 2× working load; destructive testing on request
Application Advantages of Deep Pan Conveyors
Drop-forged /Plate link shape improves load distribution across conveyor pans.
Rugged construction resists impact from large clinker or slag chunks.
Hardened pin design reduces wear in abrasive environments.
Custom-fit to pans and side profiles for zero interference and low noise.
High-temperature resistance: suitable up to 350°C continuous operation.
Works seamlessly with Constromech or OEM sprockets, shafts, and pan attachments.
Why Choose Constromech Conveyor Chains?
Constromech delivers more than chains — we deliver end-to-end reliability engineered into every link.
Custom-Built Solutions
- Configured to suit pan width, pitch, and material type
- Available with split-link pins, wear plates, or guiding attachments
OEM Compatibility
- 100% retrofit with existing deep pan conveyors from European and Indian OEMs
- Pitch-matched to existing pans and drive sprockets
In-House Quality Assurance
- Full traceability of steel batches and treatments
- Each chain tested, serialized, and documented with QA report
Inventory & Turnaround
- Stocked standard models: CMECH-DPC125 to DPC400
- Custom chains delivered in 10–12 working days with optional heat treatment
Service Support
- Assistance with chain selection, wear analysis, and conveyor upgrades
- Optional full chain–sprocket–pan integration kits
Industries Served
Cement Plants (Kiln Feed, Clinker Coolers)
Thermal Power Stations (Ash Conveyors)
Steel & Foundry Units
Aggregate and Mining Operations
Fertilizer Bulk Handling Systems
Whether you’re planning a new conveyor line or replacing worn chains in an existing system, Constromech deep pan conveyor chains are precision-built to last — with quick lead times, engineering support, and backward compatibility for peace of mind.
Other Deep Pan Conveyor components

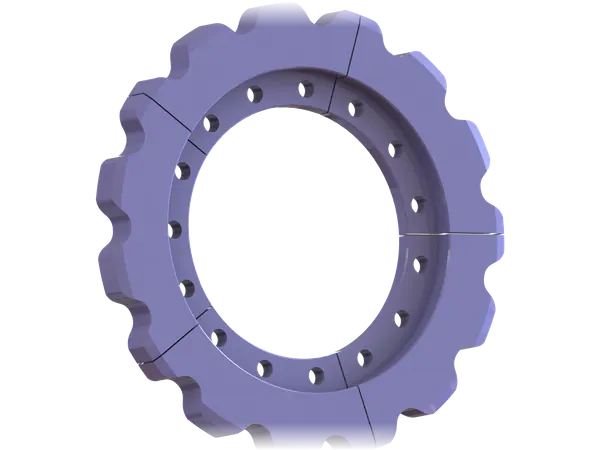

DPC Sprocket & Shaft Assembly
