Conveyor Chain Attachments

Connectors, scraper-bar attachments, shackles and chain locks matched to round link conveyor chains.

46 standard sizes
Made to your drawing

Find your size Request a quote Catalogue(PDF · 20 MB)

Dimensions

Find your size

Choose the type, then pick a size to see its dimensions, then request a quote for exactly that size.

Chain size (d × t)

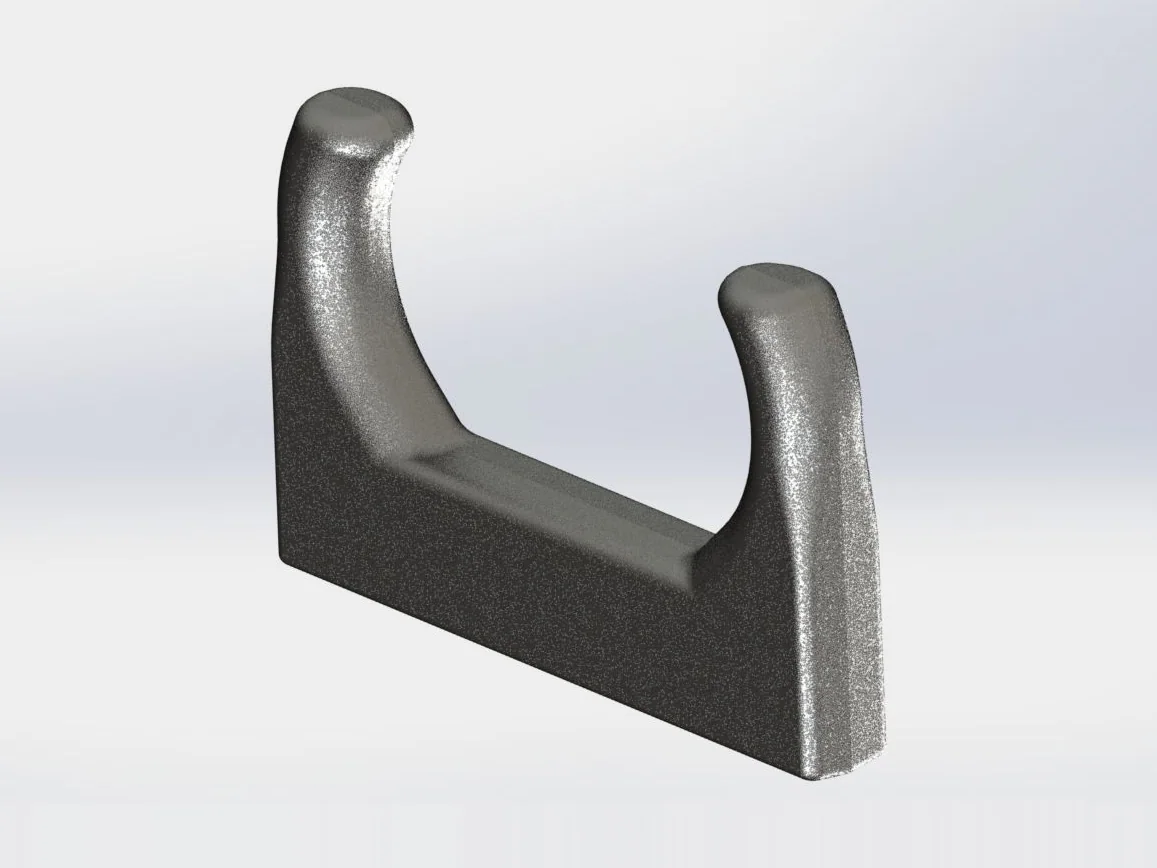

Selected — TDS connector

19 × 75

TDS type: TDS
P (mm): 156
Q (mm): 21
R (mm): 36
S (mm): 69
T (mm): 100

Request a quote for this size Ask on WhatsApp

Size not listed? We manufacture to your drawing or sample —send us your requirement.

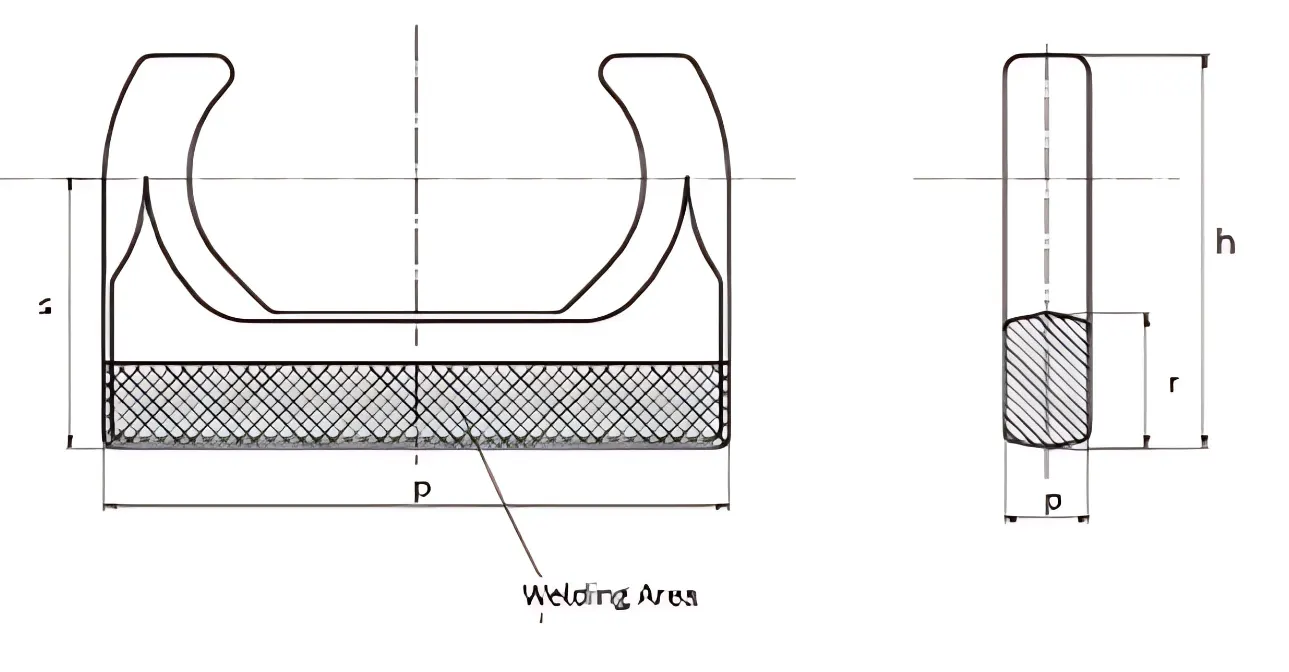

TDS connector dimension drawing — Dimension reference — letters match the table columns. Tap to enlarge.

View all 7 sizes (full table)

TDS type	Chain Size (d × t mm)	P (mm)	Q (mm)	R (mm)	S (mm)	T (mm)
TDS	19 × 75	156	21	36	69	100
TDS	22 × 86	182	25	40	80	115
TDS	26 × 100	214	30	45	92	135
TDS	30 × 108	240	35	55	110	160
TDS	30 × 120	252	35	55	110	160
TDS-	38 × 136	282	38	60	122	177
TDS	38 × 144	318	43	68	118	180

Chain size (d × t)

Selected — TDA connector

19 × 75

TDA type: TDA
P: 175
Q: 60
R: 21
S: 58
H: 90
B: B20
D: 65

Request a quote for this size Ask on WhatsApp

Size not listed? We manufacture to your drawing or sample —send us your requirement.

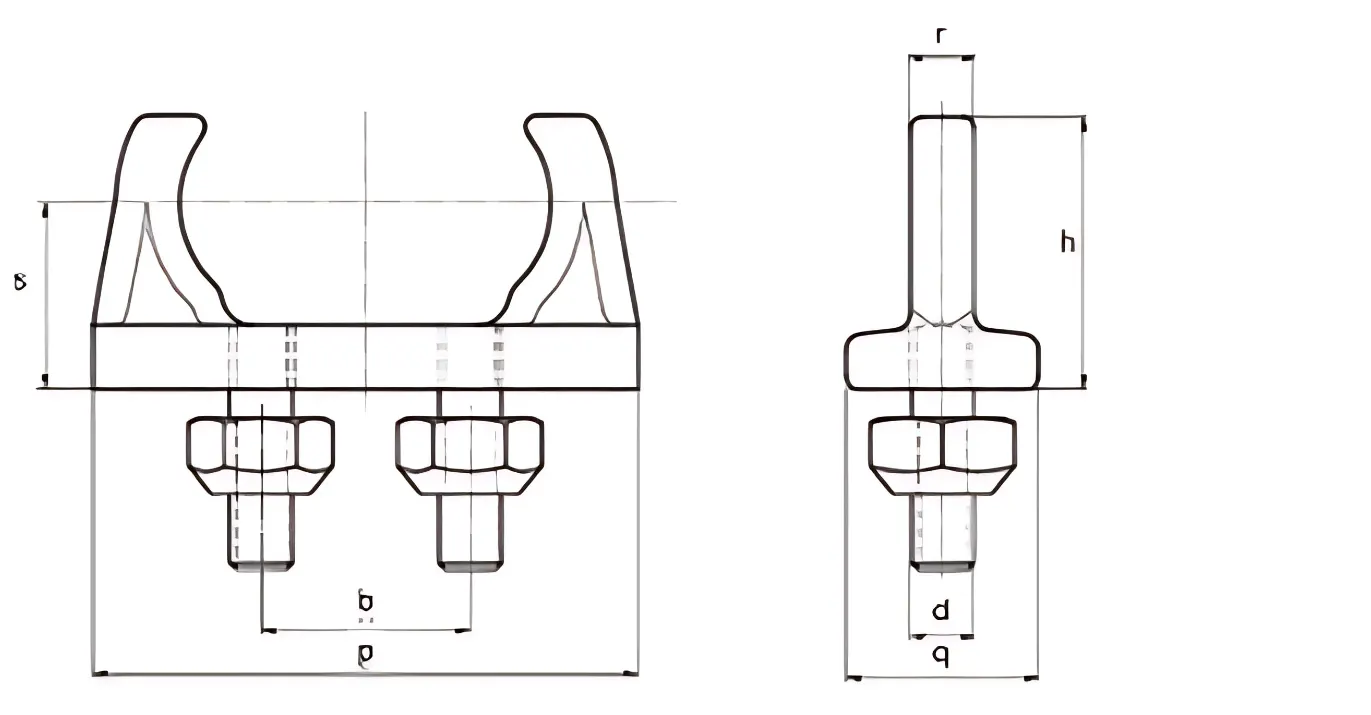

TDA connector dimension drawing — Dimension reference — letters match the table columns. Tap to enlarge.

View all 5 sizes (full table)

TDA type	Chain Size (d × t mm)	P	Q	R	S	H	B	D
TDA	19 × 75	175	60	21	58	90	B20	65
TDA	22 × 86	200	70	25	68	106	B20	71
TDA	26 × 100	235	80	30	72	116	B20	85
TDA	30 × 120	280	90	35	85	136	B24	98
TDA	38 × 136	320	100	38	98	135	B27	110

Chain size (d × t)

Selected — Scraper bar attachment

10 × 35

chain (DIN): 764
p (mm): 82
q (mm): 55
r (mm): 14
t (mm): 12
u (mm): 10
v (mm): 22
w (mm): 40
x (mm): 30
z (mm): 12
s (mm): 30
y (mm): 8.5
bolts/nuts: 8 × 45

Request a quote for this size Ask on WhatsApp

Size not listed? We manufacture to your drawing or sample —send us your requirement.

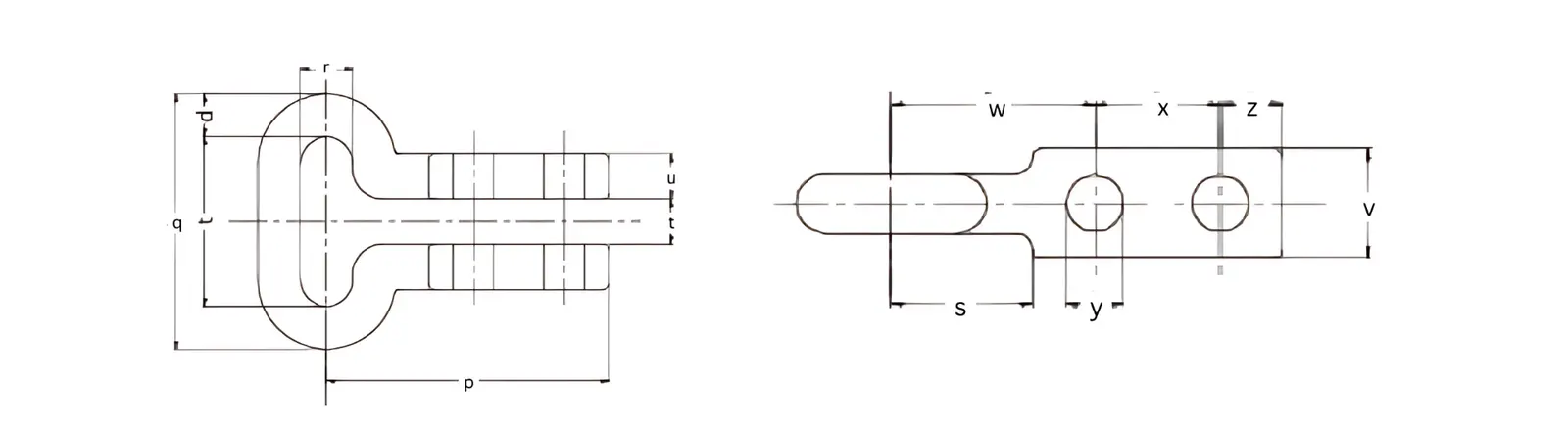

Scraper bar attachment dimension drawing — Dimension reference — letters match the table columns. Tap to enlarge.

View all 15 sizes (full table)

dxt	chain (DIN)	p (mm)	q (mm)	r (mm)	t (mm)	u (mm)	v (mm)	w (mm)	x (mm)	z (mm)	s (mm)	y (mm)	bolts/nuts
10 × 35	764	82	55	14	12	10	22	40	30	12	30	8.5	8 × 45
13 × 45	764	100	71	18	15	12	28	50	35	15	34	12.5	12 × 45
14 × 50	Non-Din	104	78	17	16	13	33	58	30	16	36	13	12 × 60
16 × 56	764	130	88	18	20	16	32	70	40	20	50	17	16 × 75
16 × 64	Non-Din	130	96	20	20	16	32	70	40	20	50	13	12 × 70
18 × 63	764	125	99	24	19	20	35	65	40	20	45	17	16 × 80
18 × 64	Non-Din	125	100	24	19	20	35	65	40	20	45	17	16 × 80
19 × 75	Non-Din	125	113	23	20	20	35	65	40	20	45	17	16 × 80
20 × 56	764	145	96	25	22	20	30	85	40	20	65	17	16 × 90
20 × 70	764	145	110	27	22	20	35	85	40	20	65	17	16 × 90
20 × 80	Non-Din	124	120	23	22	20	40	68	35	21	54	18	16 × 90
22 × 86	Non-Din	140	132	26	25	20	50	80	40	20	62	18	16 × 90
23 × 80	764	164	126	31	24	20	42	89	50	25	63	21	20 × 90
23 × 100	Non-Din	137	146	30	24	20	48	75	40	19	60	18	16 × 90
26 × 91	764	170	143	35	31	22	45	95	50	25	65	21	20 × 100

Chain size (d × t)

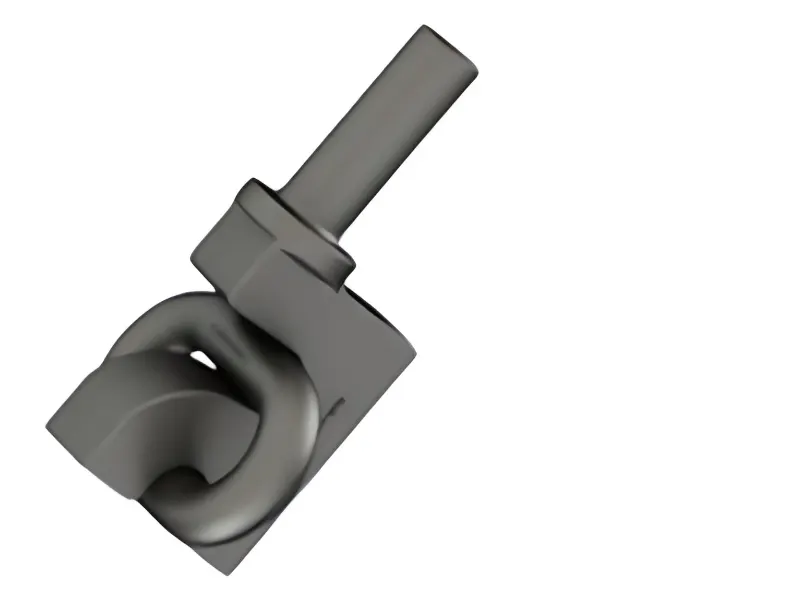

Selected — EFS chain connector

14 × 50

Pin Ø (mm): 14
Outer Width (mm): 44
Inner Width (mm): 26
Total Length (mm): 115

Request a quote for this size Ask on WhatsApp

Size not listed? We manufacture to your drawing or sample —send us your requirement.

EFS chain connector dimension drawing — Dimension reference — letters match the table columns. Tap to enlarge.

View all 8 sizes (full table)

Chain Size (d × t mm)	Pin Ø (mm)	Outer Width (mm)	Inner Width (mm)	Total Length (mm)
14 × 50	14	44	26	115
16 × 64	16	50	30	125
18 × 64	18	54	32	130
19 × 75	19	56	34	140
20 × 86	20	60	36	145
22 × 86	22	66	38	150
26 × 92	26	72	42	165
30 × 108	30	80	50	185

Chain size (d × t)

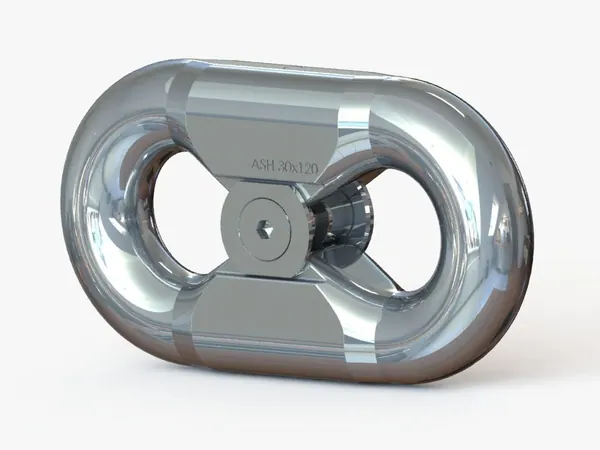

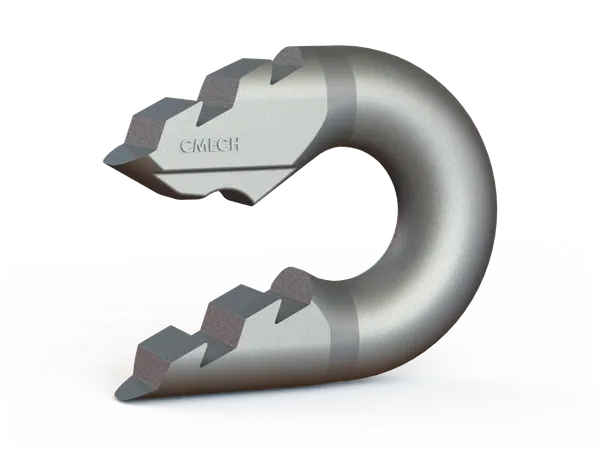

Selected — Chain lock / coupler

19 × 75

Height (m): 64.5
Width (n): 20.5

Request a quote for this size Ask on WhatsApp

Size not listed? We manufacture to your drawing or sample —send us your requirement.

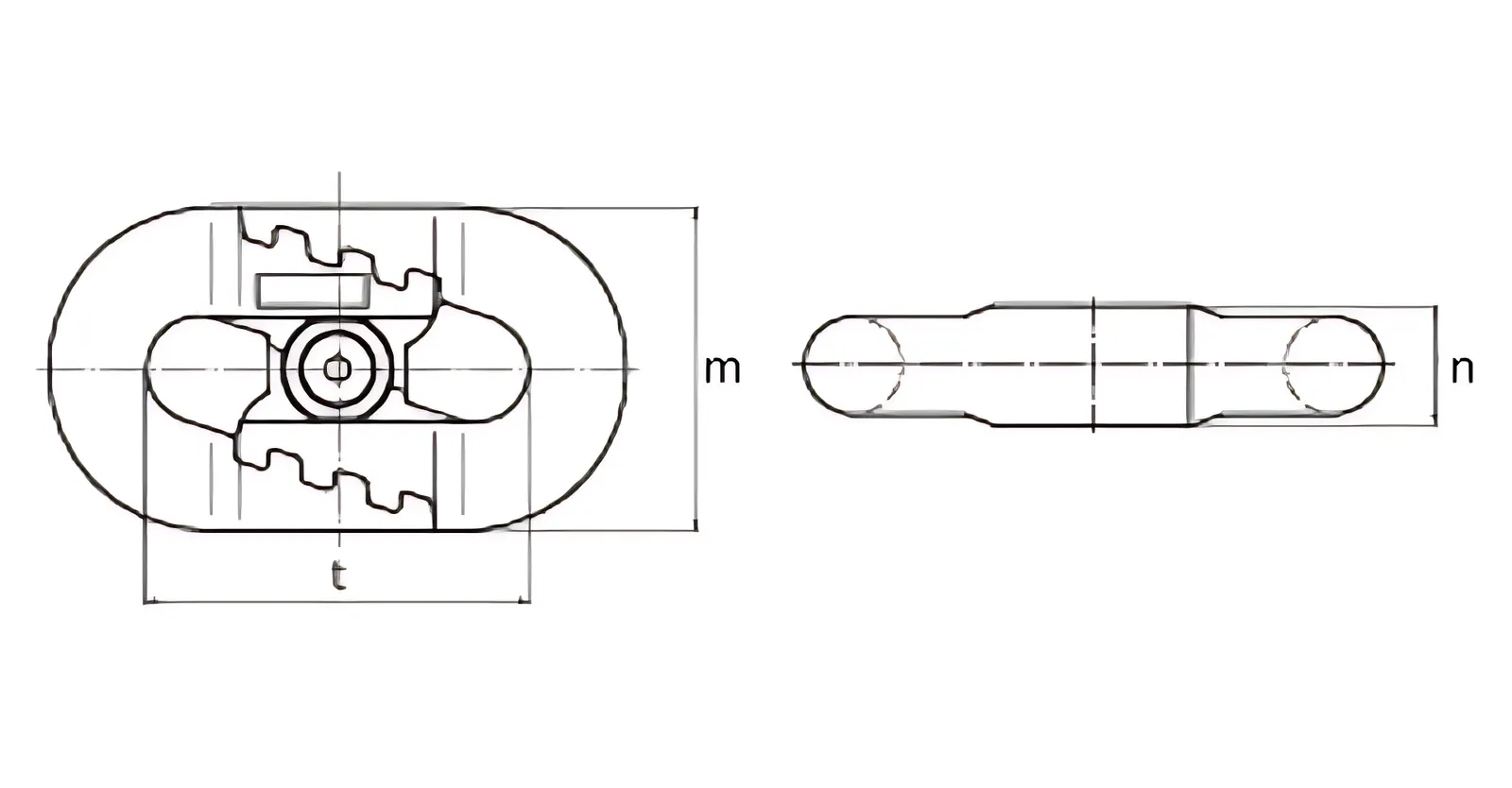

Chain lock / coupler dimension drawing — Dimension reference — letters match the table columns. Tap to enlarge.

View all 11 sizes (full table)

Chain size (d × t) mm	Height (m)	Width (n)
19 × 75	64.5	20.5
22 × 86	74	27
25 × 95	89	29
26 × 92	87	29.5
26 × 100	87	29.5
30 × 108	100	36
30 × 120	105	36
34 × 126	117	40
34 × 136	117	40
36 × 126	117	40
38 × 144	135	45

More dimension sheets

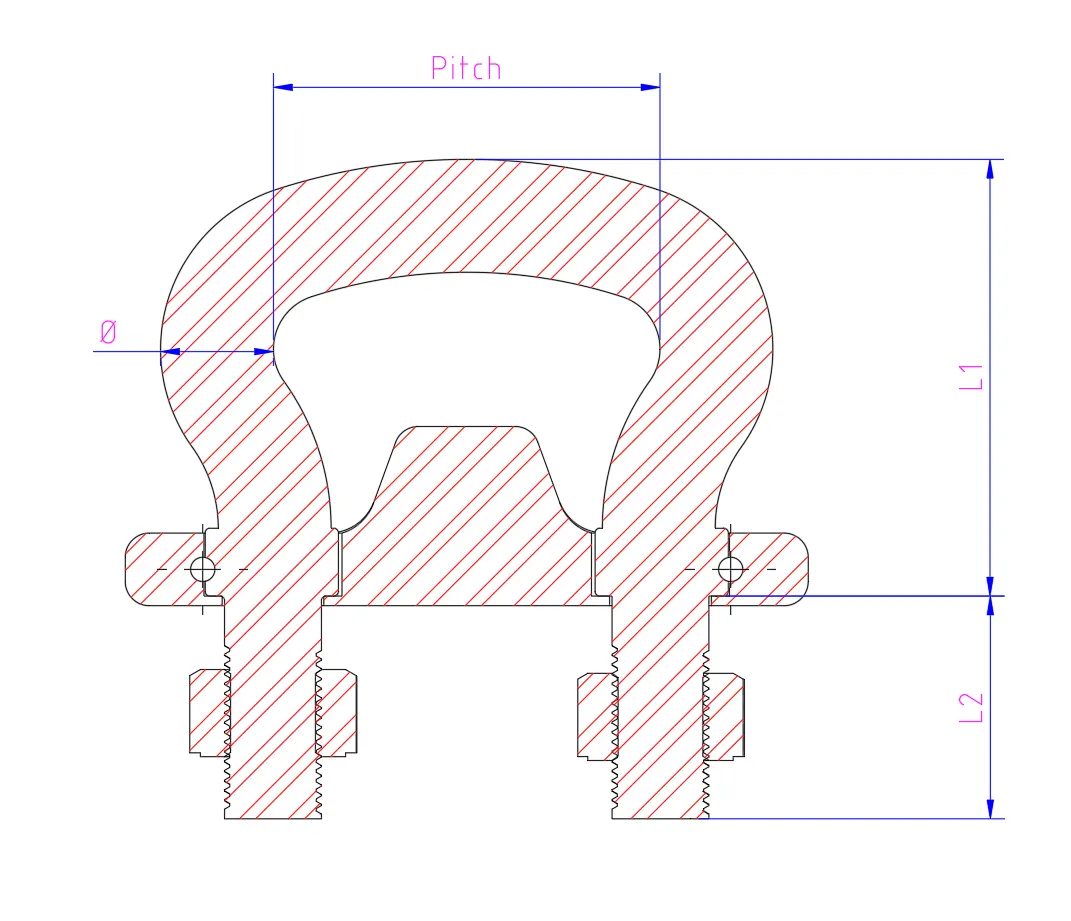

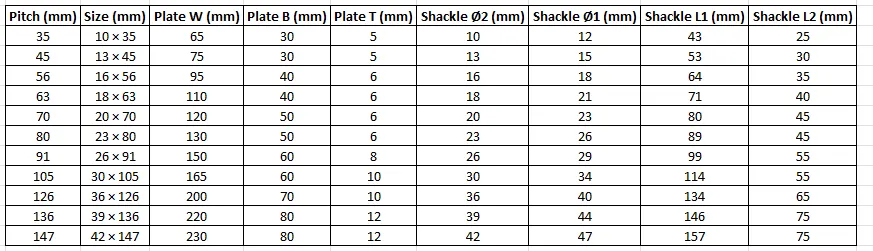

LDA shackle dimension table — LDA shackle
