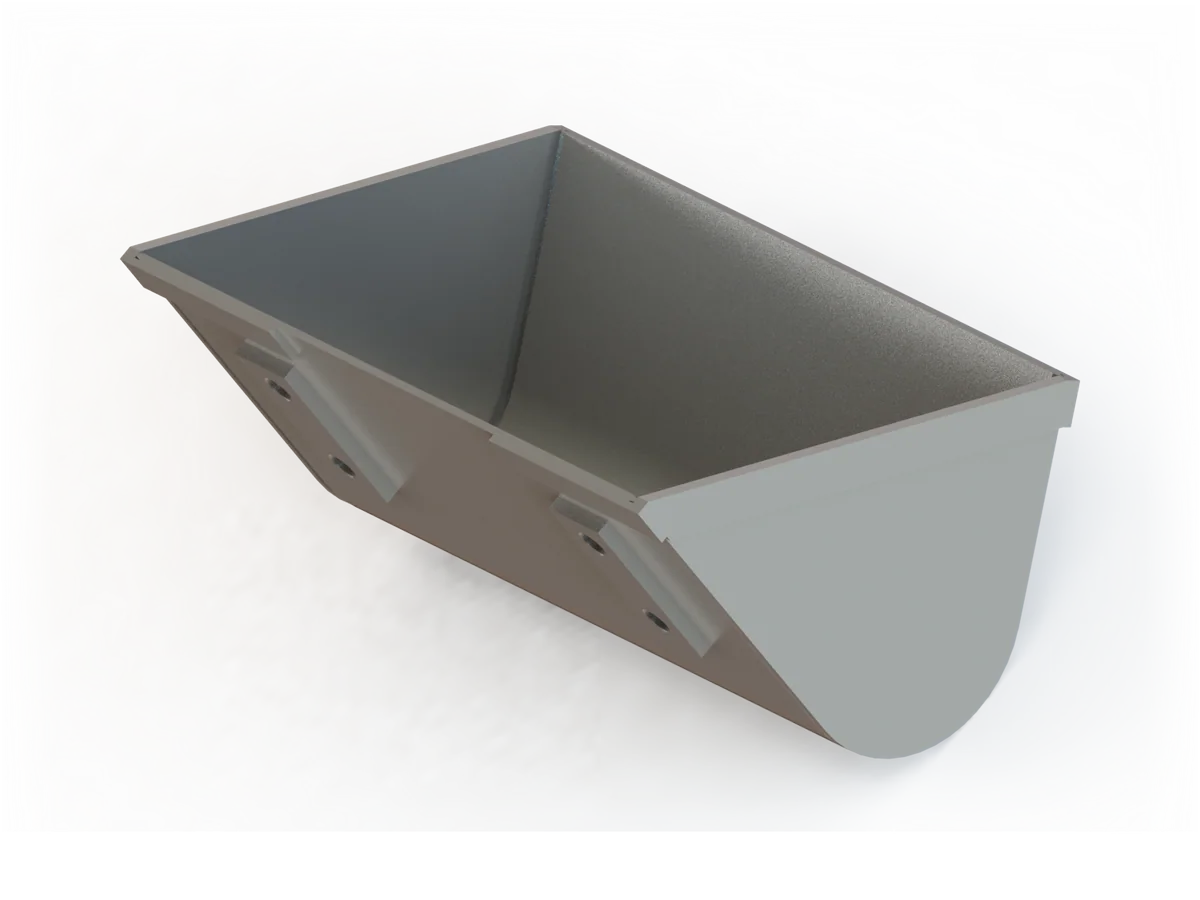

Elevator Buckets
Rugged fabricated buckets in high-tensile steel for chain and belt bucket elevators, precision-formed for uniform material discharge.
- 48 standard sizes
- Made to your drawing
Dimensions
Find your size
Pick a size to see its dimensions, then request a quote for exactly that size.
Selected — Bucket dimensions
160 × 140 · 15233
Size not listed? We manufacture to your drawing or sample —send us your requirement.
Dimension drawing on request
We share the general-arrangement drawing for the size you pick, or build to your own drawing.
Ask for the drawingView all 48 sizes (full table)
| Bucket (b × a) | DIN |
|---|---|
| 160 × 140 | 15233 |
| 160 × 140 | 15234 |
| 160 × 140 | 15235 |
| 160 × 160 | 15233 |
| 160 × 160 | 15234 |
| 160 × 160 | 15235 |
| 200 × 160 | 15233 |
| 200 × 160 | 15234 |
| 200 × 160 | 15235 |
| 200 × 180 | HC |
| 250 × 180 | 15233 |
| 250 × 180 | 15234 |
| 250 × 180 | 15235 |
| 250 × 200 | 15233 |
| 250 × 200 | 15234 |
| 250 × 200 | 15235 |
| 250 × 200 | HC |
| 315 × 200 | 15233 |
| 315 × 200 | 15234 |
| 315 × 200 | 15235 |
| 315 × 224 | HC |
| 400 × 224 | 15233 |
| 400 × 224 | 15234 |
| 400 × 224 | 15235 |
| 400 × 250 | HC |
| 500 × 250 | 15233 |
| 500 × 250 | 15234 |
| 500 × 250 | 15235 |
| 500 × 280 | HC |
| 630 × 280 | 15233 |
| 630 × 280 | 15234 |
| 630 × 280 | 15235 |
| 630 × 315 | HC |
| 800 × 315 | 15233 |
| 800 × 315 | 15234 |
| 800 × 315 | 15235 |
| 800 × 355 | HC |
| 1000 × 355 | 15233 |
| 1000 × 355 | 15234 |
| 1000 × 355 | 15235 |
| 1000 × 400 | HC |
| 1250 × 400 | 15233 |
| 1250 × 400 | 15234 |
| 1250 × 400 | 15235 |
| 1250 × 450 | HC |
| 1400 × 425 | 15234 |
| 1600 × 450 | 15234 |
| 1600 × 500 | HC |
Fabricated Buckets for Bulk Material Handling
Designed for Demanding Applications
Whether you’re elevating clinker, fly ash, slag, iron ore, gypsum, or granular fertilizer, Constromech buckets deliver:
- High volumetric efficiency
- Abrasion and impact resistance
- Precise mounting fit and smooth material flow
- Compatibility with all standard attachment types
Material & Manufacturing Highlights
- Fabricated from wear-resistant carbon steel or optional SS304/SS316
- Reinforced corners and continuous welded seams for maximum strength
- Anti-clogging design for sticky or fine materials
- Optional hard-facing or ceramic lining for extended wear life
- Powder coating or galvanizing available for corrosive environments
Compatible with Chain & Belt Elevators
Our buckets are suitable for:
- Central chain bucket elevators in clinker and limestone handling
- Double-strand elevators for blast furnace slag
- High-lift belt elevators in power plant ash conveying
- Fertilizer industry blending and packaging systems
Why Choose Constromech Buckets?
Get Your Bucket Configuration Today
Whether you’re designing a new elevator or replacing worn-out buckets, our team is ready to assist with bucket selection, custom engineering, and supply scheduling.
