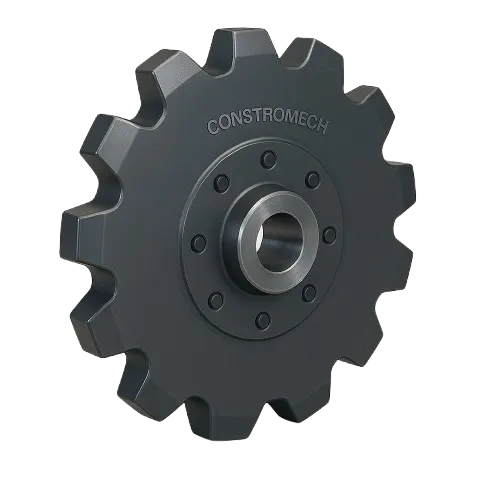

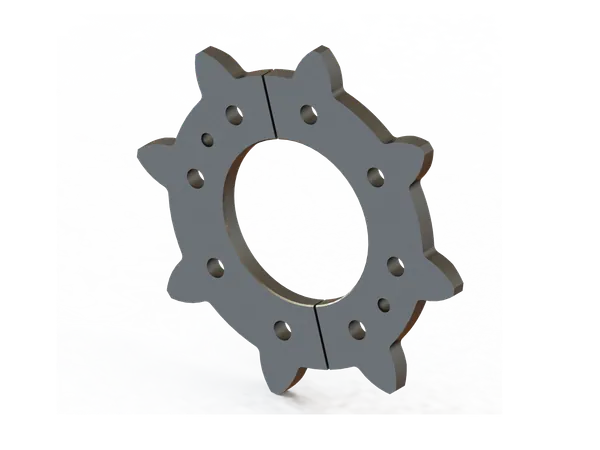

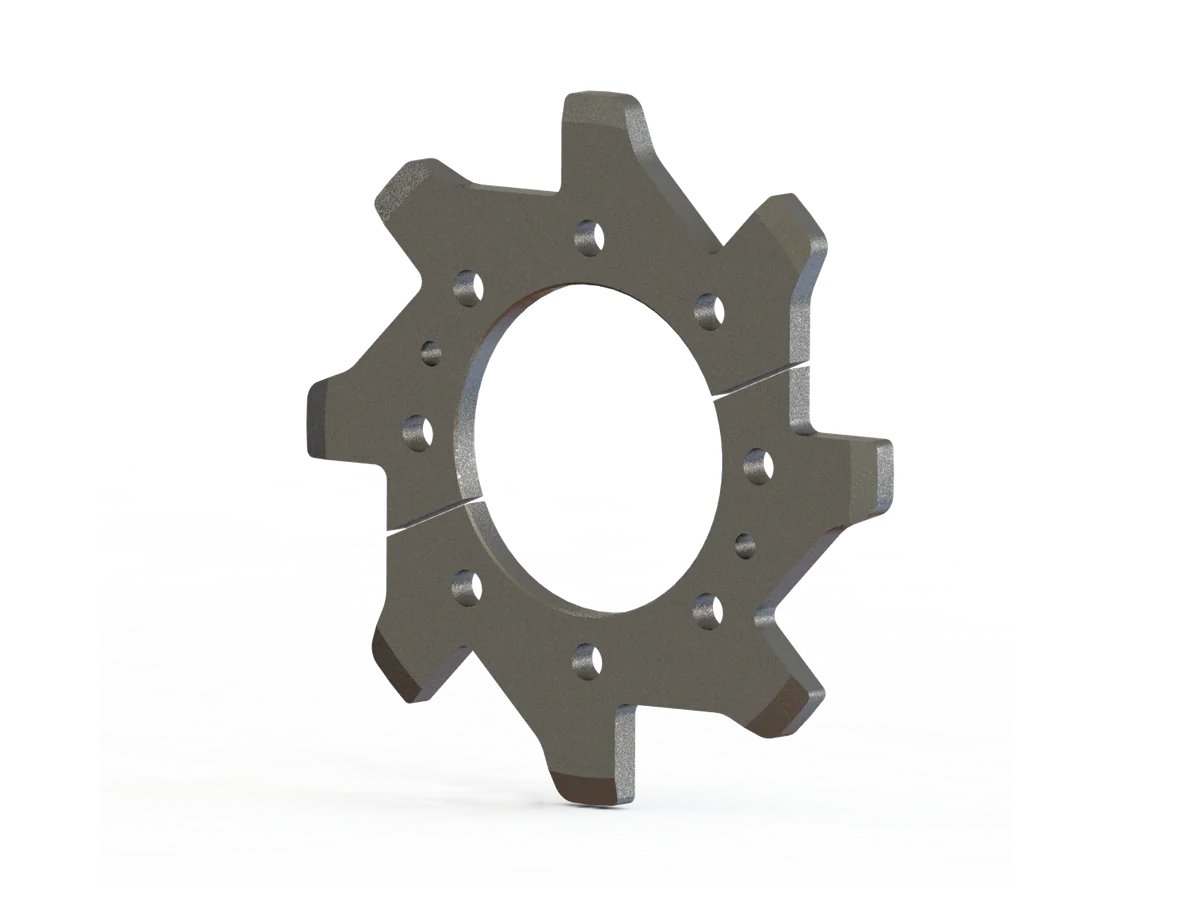

Plate Link Chain Sprockets
Plate link chain sprockets for bucket elevators, built for heavy-duty industrial handling. Further PCDs on request.
- 10 standard sizes
- Made to your drawing
Dimensions
Find your size
Pick a size to see its dimensions, then request a quote for exactly that size.
Selected — Plate link chain sprocket
150 × 50
- No. of Teeth
- 12
- Pitch Circle Ø (PCD)
- 610 mm
- Outer Ø
- 640 mm
- Bore Ø
- 70 mm
- Tooth Width
- 25 mm
Size not listed? We manufacture to your drawing or sample —send us your requirement.
Dimension drawing on request
We share the general-arrangement drawing for the size you pick, or build to your own drawing.
Ask for the drawingView all 10 sizes (full table)
| Chain Size (P × d) | No. of Teeth | Pitch Circle Ø (PCD) | Outer Ø | Bore Ø | Tooth Width |
|---|---|---|---|---|---|
| 150 × 50 | 12 | 610 mm | 640 mm | 70 mm | 25 mm |
| 160 × 56 | 12 | 630 mm | 660 mm | 75 mm | 26 mm |
| 180 × 63 | 12 | 670 mm | 700 mm | 80 mm | 28 mm |
| 200 × 70 | 12 | 710 mm | 740 mm | 85 mm | 30 mm |
| 210 × 80 | 12 | 740 mm | 770 mm | 90 mm | 32 mm |
| 260 × 91 | 12 | 790 mm | 820 mm | 100 mm | 35 mm |
| 280 × 105 | 12 | 830 mm | 870 mm | 110 mm | 38 mm |
| 315 × 126 | 12 | 890 mm | 930 mm | 120 mm | 40 mm |
| 350 × 136 | 12 | 950 mm | 990 mm | 130 mm | 42 mm |
| 400 × 147 | 12 | 1000 mm | 1050 mm | 140 mm | 45 mm |
Engineered for Demanding Industrial Applications
Our double-strand chains offer balanced load distribution and high structural stability for bucket elevators with two-strand configurations.
Industry Applications
Our plate sprockets are widely deployed in:
- Clinker and raw meal elevators in cement plants
- Sinter and pellet charging systems in steel mills
- Fly ash and coal elevators in power generation units
- Slag and ore lifting applications in mining operations
- Bulk fertilizer bagging and blending plants
Engineering Features
- Precision-machined tooth profiles for optimal chain seating and reduced vibration
- High-grade alloy steel bodies, optionally induction-hardened for superior wear resistance
- Fine-tuned bore tolerances for perfect shaft fit
- Balanced for high-speed rotation, reducing mechanical stress on shafts and bearings
- Designed for uniform tooth loading, minimizing chain shock and extending equipment life
Why Choose Constromech Sprockets?
- Fully compatible with standard and custom plate link chains
- Manufactured in-house for assured quality and fast lead times
- Optional hardened teeth for extreme duty cycles
- Backed by our team of engineers for design customization
- Cost-effective replacement solutions for imported equipment
Talk to Our Experts
Need help selecting the right sprocket for your bucket elevator? Looking for a reliable Indian manufacturer that ensures OEM compatibility, durability, and quick delivery?
