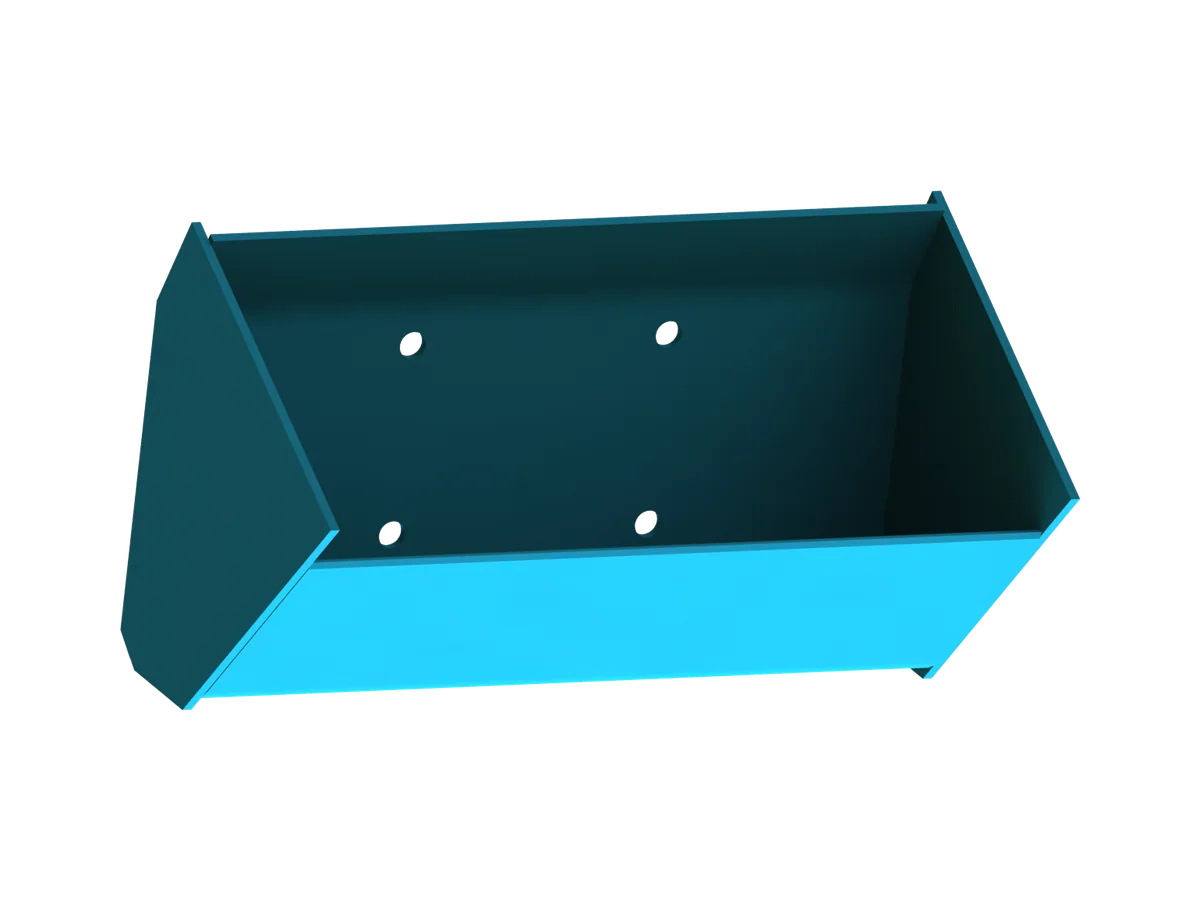

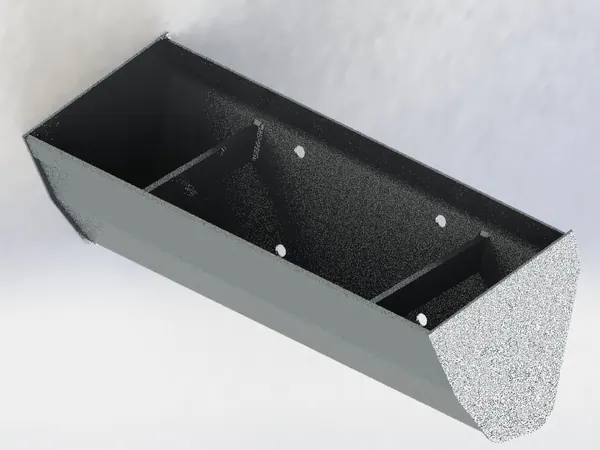

Fabricated Elevator Buckets
Rugged fabricated elevator buckets in high-tensile steel for chain and belt bucket elevators, precision-formed for uniform material discharge.
- 13 standard sizes
- Made to your drawing
Dimensions
Find your size
Pick a size to see its dimensions, then request a quote for exactly that size.
Selected — Fabricated bucket
200 × 150
- Depth (D)
- 150
- Hole Pitch (A)
- 150
- Hole Ø (mm)
- 8
- Capacity (Ltrs)
- 2.5
Size not listed? We manufacture to your drawing or sample —send us your requirement.
Dimension drawing on request
We share the general-arrangement drawing for the size you pick, or build to your own drawing.
Ask for the drawingView all 13 sizes (full table)
| Bucket Size (W × H mm) | Depth (D) | Hole Pitch (A) | Hole Ø (mm) | Capacity (Ltrs) |
|---|---|---|---|---|
| 200 × 150 | 150 | 150 | 8 | 2.5 |
| 250 × 200 | 180 | 200 | 10 | 4.2 |
| 300 × 250 | 200 | 230 | 10 | 6.8 |
| 350 × 250 | 220 | 250 | 12 | 8.5 |
| 400 × 300 | 250 | 300 | 12 | 12 |
| 450 × 315 | 280 | 350 | 12 | 15 |
| 500 × 355 | 300 | 400 | 14 | 18.5 |
| 560 × 400 | 320 | 450 | 14 | 22 |
| 630 × 450 | 350 | 500 | 16 | 30 |
| 710 × 500 | 400 | 560 | 16 | 40 |
| 800 × 560 | 450 | 630 | 18 | 52 |
| 900 × 600 | 480 | 700 | 20 | 65 |
| 1000 × 630 | 500 | 800 | 22 | 78-85 |
Designed for Demanding Applications
Whether you’re elevating clinker, fly ash, slag, iron ore, gypsum, or granular fertilizer, Constromech buckets deliver:
- High volumetric efficiency
- Abrasion and impact resistance
- Precise mounting fit and smooth material flow
- Compatibility with all standard attachment types
Material & Manufacturing Highlights
- Fabricated from wear-resistant carbon steel or optional SS304/SS316
- Reinforced corners and continuous welded seams for maximum strength
- Anti-clogging design for sticky or fine materials
- Optional hard-facing or ceramic lining for extended wear life
- Powder coating or galvanizing available for corrosive environments
Compatible with Chain & Belt Elevators
Our buckets are suitable for:
- Central chain bucket elevators in clinker and limestone handling
- Double-strand elevators for blast furnace slag
- High-lift belt elevators in power plant ash conveying
- Fertilizer industry blending and packaging systems
Why Choose Constromech Buckets?
Get Your Bucket Configuration Today
Whether you’re designing a new elevator or replacing worn-out buckets, our team is ready to assist with bucket selection, custom engineering, and supply scheduling.
