Flow Conveyor
Flow conveyor chains are tailored for horizontal or low-angle conveying of powdered and granular materials — especially in cement kilns, fly ash systems, and additive dosing lines. These chains provide controlled flow with reduced wear and noise.
Efficient Material Flow in Horizontal & Inclined Systems**
Product Construction
| Component | Description |
| Side Bars | Deep-profile links designed for material pushing and directional control |
| Bush-Pin Assembly | Heavy-duty pins and bushes; surface-hardened for abrasive flow |
| Flight Attachments | Welded scrapers or paddles for bulk movement |
| Guide Rollers | Optional side rollers for alignment in guided channels |
Key Features & Benefits
| Feature | Benefit |
| Pitch Range: 125 – 228.6 mm | Supports layout flexibility for new and retrofit systems |
| Abrasion-Resistant Components | Ideal for handling cement dust, fly ash, and granular solids |

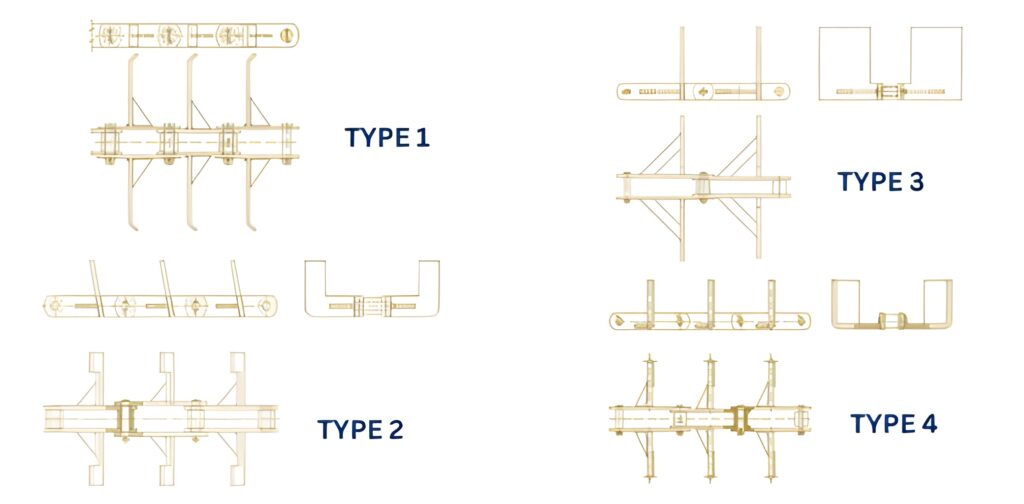

| Multiple Link Styles Available | Suitable for deep or shallow conveying channels |
| Quiet and Smooth Operation | Designed for low-noise, low-vibration environments |
Application Areas
Horizontal/Inclined ash conveyors
Additive feeding lines
Fly ash and dust handling systems
Raw meal flow conveyors in cement plants
Reliable Flow Starts Here
Our flow conveyor chains ensure metered, dust-free transport — custom-fit to your hopper or kiln line.
Send your drawing or pitch — we’ll deliver a matching chain set fast.
Contact Constromech for high-performance conveying solutions.

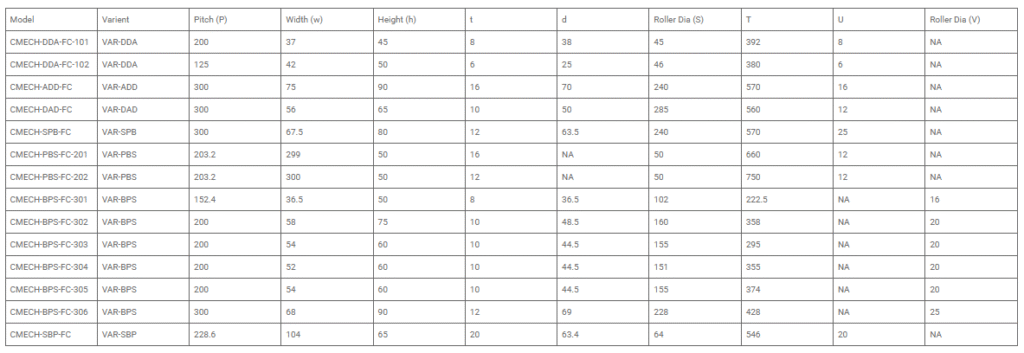

FLOW CONVEYOR TABLE
