Apron Feeder
Apron feeder chains are designed to move bulk materials with high impact, high abrasiveness, or large size — especially in mining, steel, cement, and power applications. Built with forged links and wear-resistant pans, these chains support slow-speed, heavy-load conveying in surge hoppers, crushers, and kilns. At Constromech, we supply apron feeder chains built to withstand aggressive loading, corrosion, and long operational hours. Whether for new installations or replacements, our systems are trusted to perform in the most demanding bulk handling setups.
Tough Where It Counts. Reliable Where It Matters.
Product Construction
| Component | Description |
| Chain Link | Drop-forged steel with deep-hardened contact surfaces |
| Bush & Pin Sets | Induction hardened and precision machined for extended life |
| Apron Pans | Fabricated pans with reinforced stiffeners and overlap design |
| Sidebars | Heat-treated, weldable alloy steel sidebars for torsional stability |
| Bolting System | High-torque-grade bolts or rivets for pan mounting |
Key Features & Benefits
| Feature | Benefit |
| Shock & Impact Resistant Build | Handles direct drop of large rocks, cement clinker, or ore |
| Hardened Pins and Bushings | Increases wear life in abrasive zones |
| Overlapping Pans with Sealing | Prevents material leakage and improves belt tracking |
| Easy-to-Replace Pan Design | Reduces maintenance time and cost |
| Optional Rollers or Slide Pads | Allows for rail-based or skid-mounted design |
Application Areas
Raw material hoppers in mining and quarrying
Kiln feed conveyors in cement plants
Limestone reclaim systems
Sinter plants and coke handling in steel mills
Slag and clinker handling in thermal power plants
Optional Add-ons
Roller-supported apron chains for longer conveyors
Heat-resistant apron pans for hot clinker handling
Curved aprons and deflector plates for inclined systems
Drive and tail sprockets, shafts, and guards available as part of a complete kit
Ready to Perform. Built to Last.
Constromech delivers apron feeder chains and components as a full assembly — from forged chains to pans to drive elements. We ensure fast quote responses, matched specifications, and guaranteed fitment — whether for OEM systems or tailored retrofits.
Share your layout drawing or pitch details, and we’ll return a matched solution within 48 hours.
Let Constromech be your trusted apron feeder solution partner.

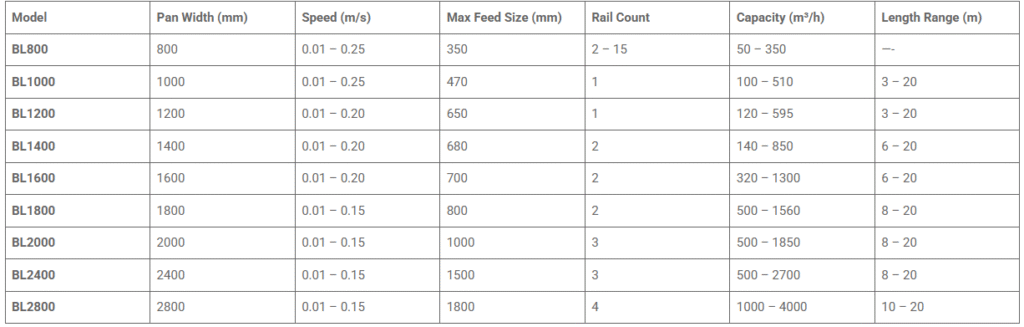

APRON FEEDER TABLE
